Features & Benefits
- A driver with prewired control in a compact, unified solution
- Optional auxiliary power included (see configurations)
- Ready to communicate wirelessly once power is connected
Downloads
Product Specs
| Environment / IP Rating | Indoor / Damp Location (IP20) |
|---|---|
| Certifications | Class 2 |
| Warranty | 5 Year Limited |

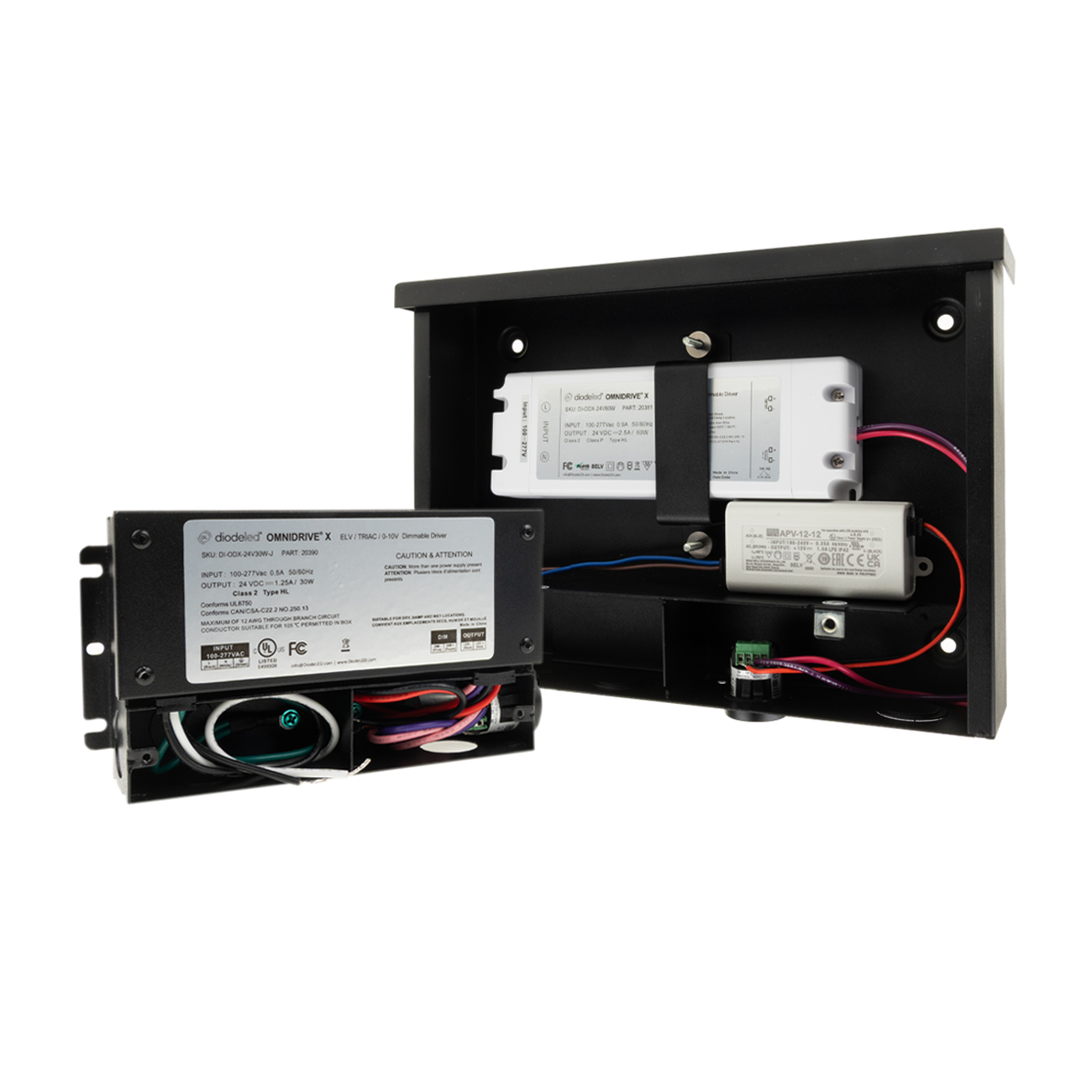

Combine OMNIDRIVE® X 0-10V dimming with wireless control via the integrated Athena Wireless Node, enabling effortless integration with the Lutron Athena control system.
| SKU | Output Voltage | Wattage | Type | Environment / IP Rating | Certifications | Dimensions |
|---|---|---|---|---|---|---|
| DI-AWN-ODX-24V30W-J | 24V DC | 30W | Without Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 6.5 x 3.7 x 1.57 in. |
| DI-AWN-ODX-24V60W-J | 24V DC | 60W | Without Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 7.4 x 3.7 x 1.57 in. |
| DI-AWN-ODX-24V96W-J | 24V DC | 96W | Without Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 8.66 x 3.7 x 1.57 in. |

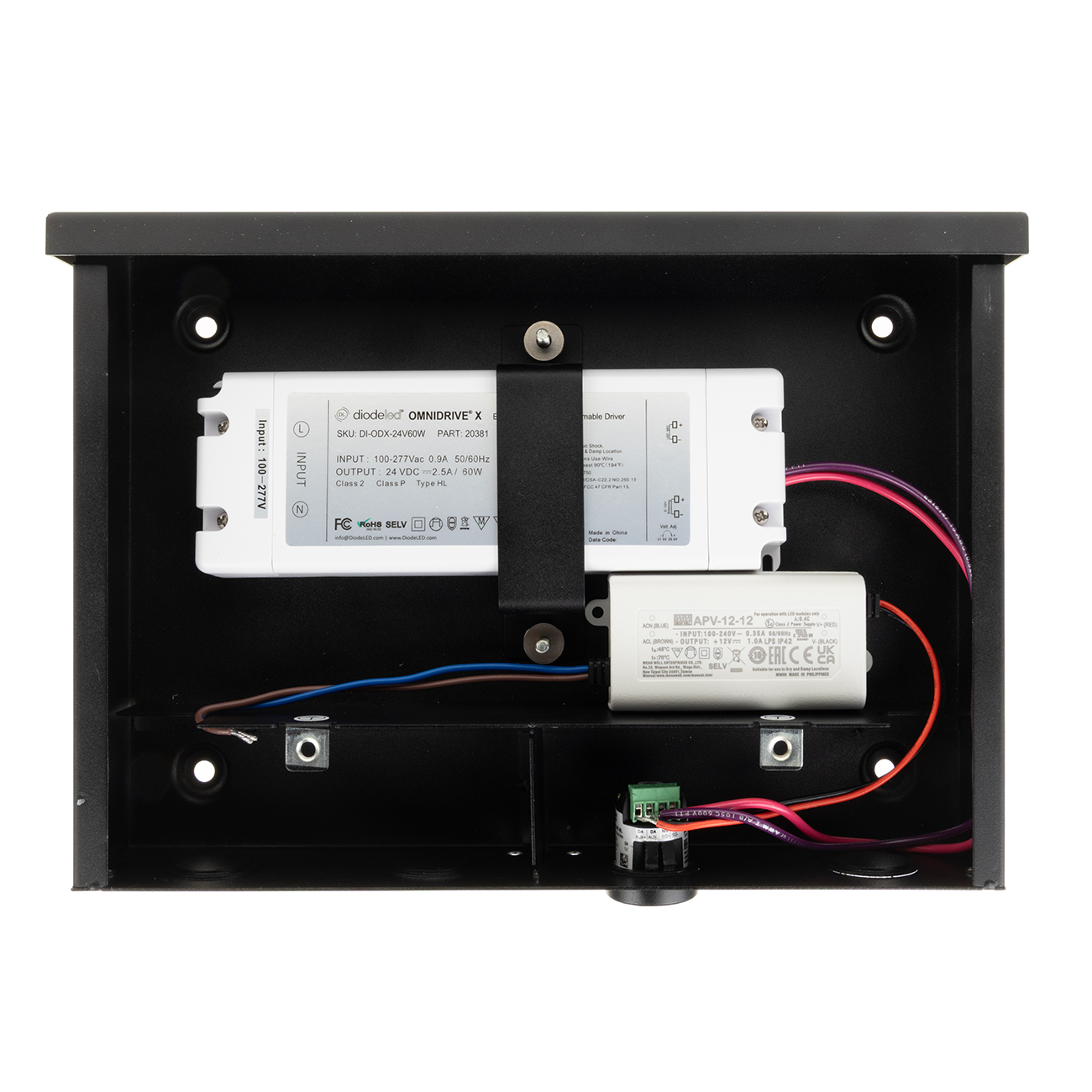

| DI-AWNAUX-ODX-24V30W-LPS3R | 24V DC | 30W | With Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 10.79 x 7.34 x 2.36 in. |
| DI-AWNAUX-ODX-24V60W-LPS3R | 24V DC | 60W | With Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 10.79 x 7.34 x 2.36 in. |
| DI-AWNAUX-ODX-24V96W-LPS3R | 24V DC | 96W | With Auxiliary Power | Indoor / Damp Location (IP20) | Class 2 | 10.79 x 7.34 x 2.36 in. |
