Features & Benefits

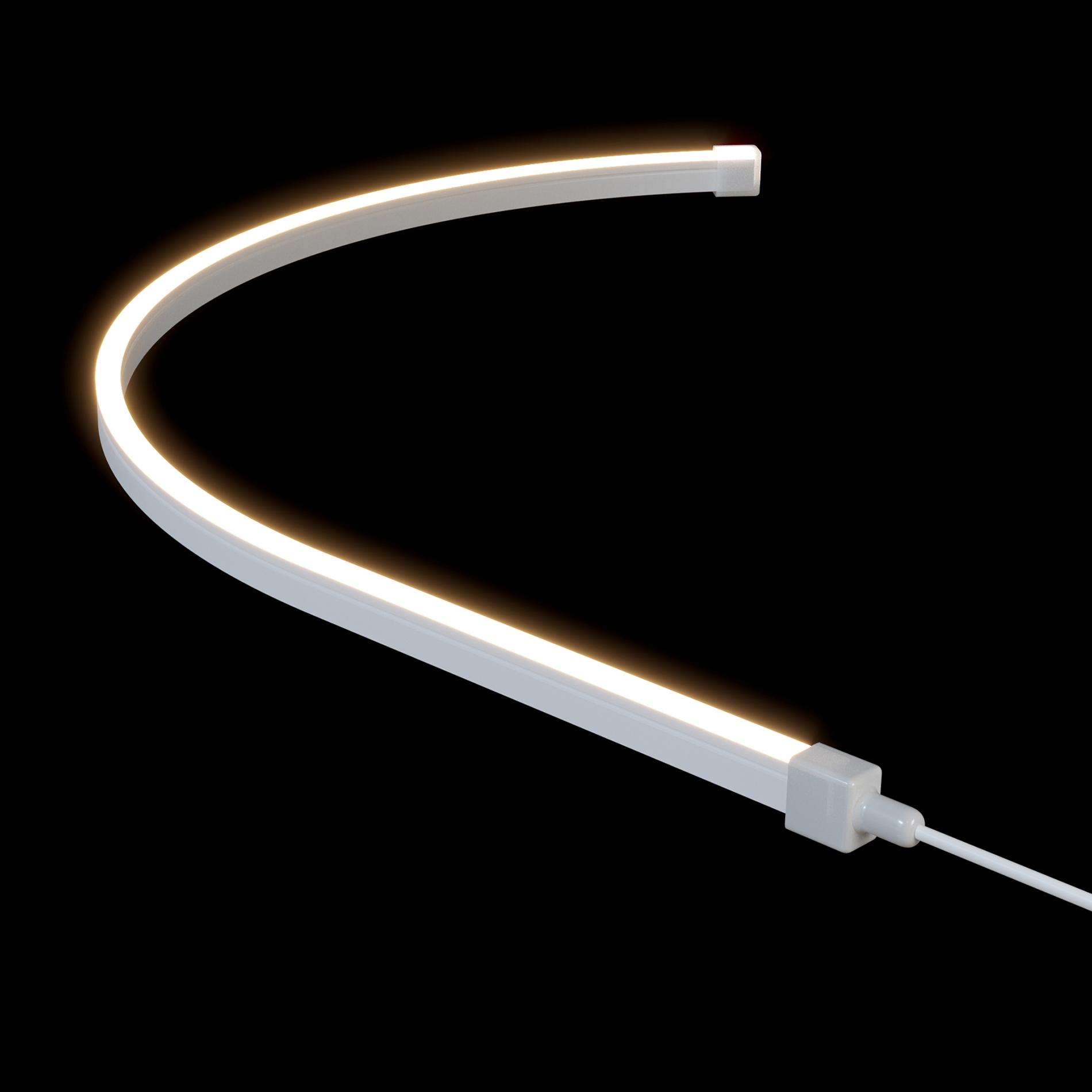

- Side-bending for curved architectural details
- Very small fixture with no visible dots
- Water resistant for indoor and outdoor use
- 90+ CRI
- Factory assembly (IP65), field adjustable termination (IP65)
Product Specs
| Cuttable Increments | 1 in. |
|---|---|
| Environment / IP Rating | Outdoor/Wet Location (IP65) |
| Input Voltage | 24VDC |
| Max. Run | Up to 16.4 ft. |
| Warranty | 5 Year Limited |
LINAIRE® Flex brings linear light to any space. Water resistant and fully diffused for a dotless look, LINAIRE Flex fixtures can be factory– or field–assembled to fit coves, niches, pockets, and other difficult-to-light spaces both indoors and out. Choose between different sizes, bending configurations, color temperatures (CCTs), and outputs to meet the exact needs of your projects. LINAIRE Flex features precision color rendering and high R-values for vivid, accurate lighting in demanding applications.
| SKU | Light Beam Angle | Input Voltage | Lumens / ft. | Max. Run | Average Lumens (per ft.) | Power Option | Color (CCT) | Length | Type | Item |
|---|---|---|---|---|---|---|---|---|---|---|
| DI-24V-MSE-LIN-24-016 | 120º | 24VDC | 65 | Up to 16.4 ft. | 65+ Lm/ft. - 16.4 ft. Spool | 2400K | 16.4 ft. Spool | Micro Side Bend | Light Engine Only | |
| DI-24V-MSE-LIN-27-016 | 120º | 24VDC | 66 | Up to 16.4 ft. | 65+ Lm/ft. - 16.4 ft. Spool | 2700K | 16.4 ft. Spool | Micro Side Bend | Light Engine Only | |
| DI-24V-MSE-LIN-30-016 | 120º | 24VDC | 72 | Up to 16.4 ft. | 65+ Lm/ft. - 16.4 ft. Spool | 3000K | 16.4 ft. Spool | Micro Side Bend | Light Engine Only | |
| DI-24V-MSE-LIN-35-016 | 120º | 24VDC | 72 | Up to 16.4 ft. | 65+ Lm/ft. - 16.4 ft. Spool | 3500K | 16.4 ft. Spool | Micro Side Bend | Light Engine Only | |
| DI-24V-MSE-LIN-40-016 | 120º | 24VDC | 69 | Up to 16.4 ft. | 65+ Lm/ft. - 16.4 ft. Spool | 4000K | 16.4 ft. Spool | Micro Side Bend | Light Engine Only | |
| DI-LIN-MSE-EC | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Accessory | End Cap (2x Open/2x Closed) |

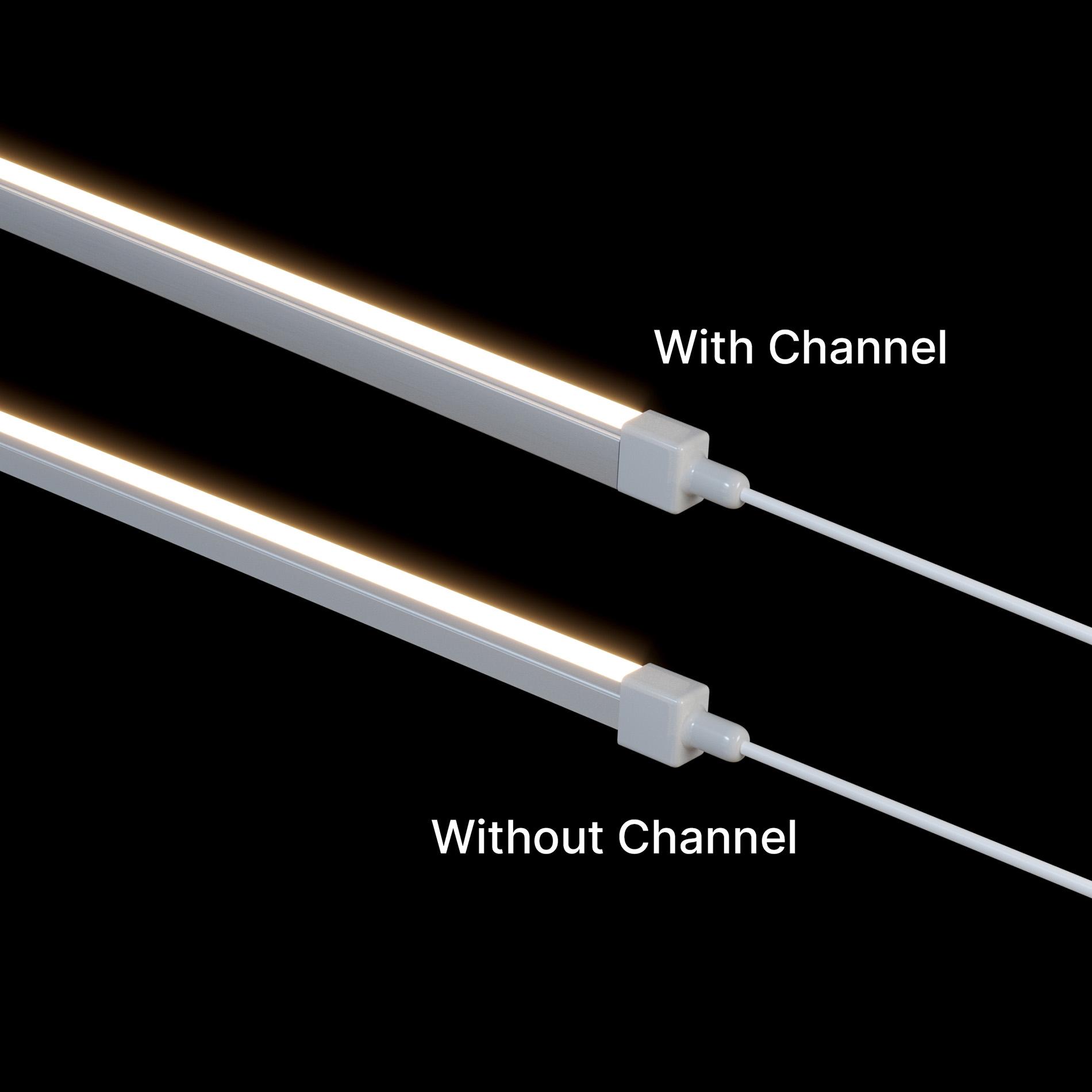

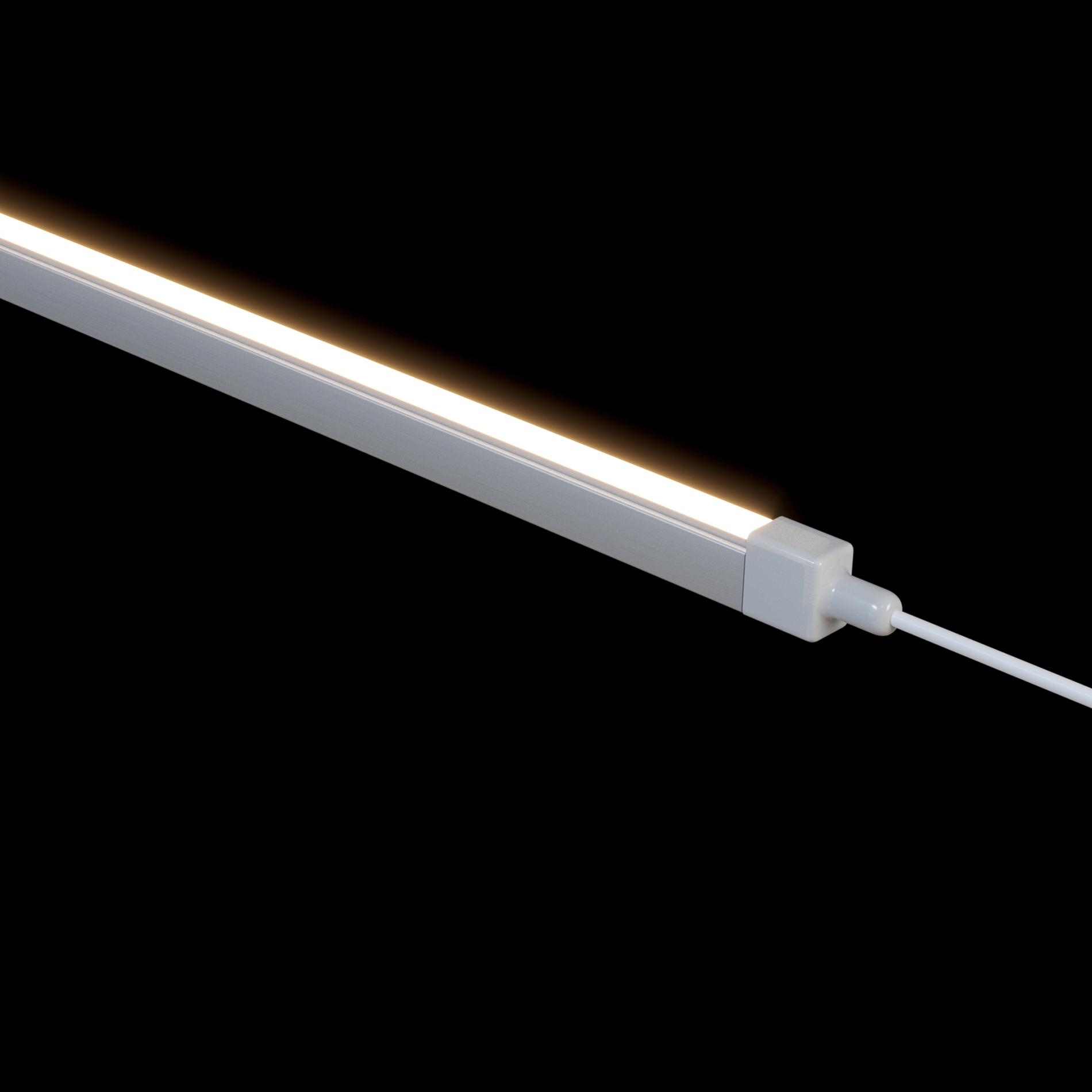

| DI-LIN-MSE-MTCH-39 | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Accessory | Mounting - Channel |
| DI-LIN-MSE-MTCL-2 | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Accessory | Mounting - Clips (2x) |
- Power Supplies
-
OMNIDRIVE® X Dimmable Driver
Versatile driver for most high-performance dimming applications.Name
