LINAIRE® Flex Mini 3D

Top

LINAIRE® Flex Mini 3D

LINAIRE® Flex Mini 3D
LINAIRE® Flex Mini 3D

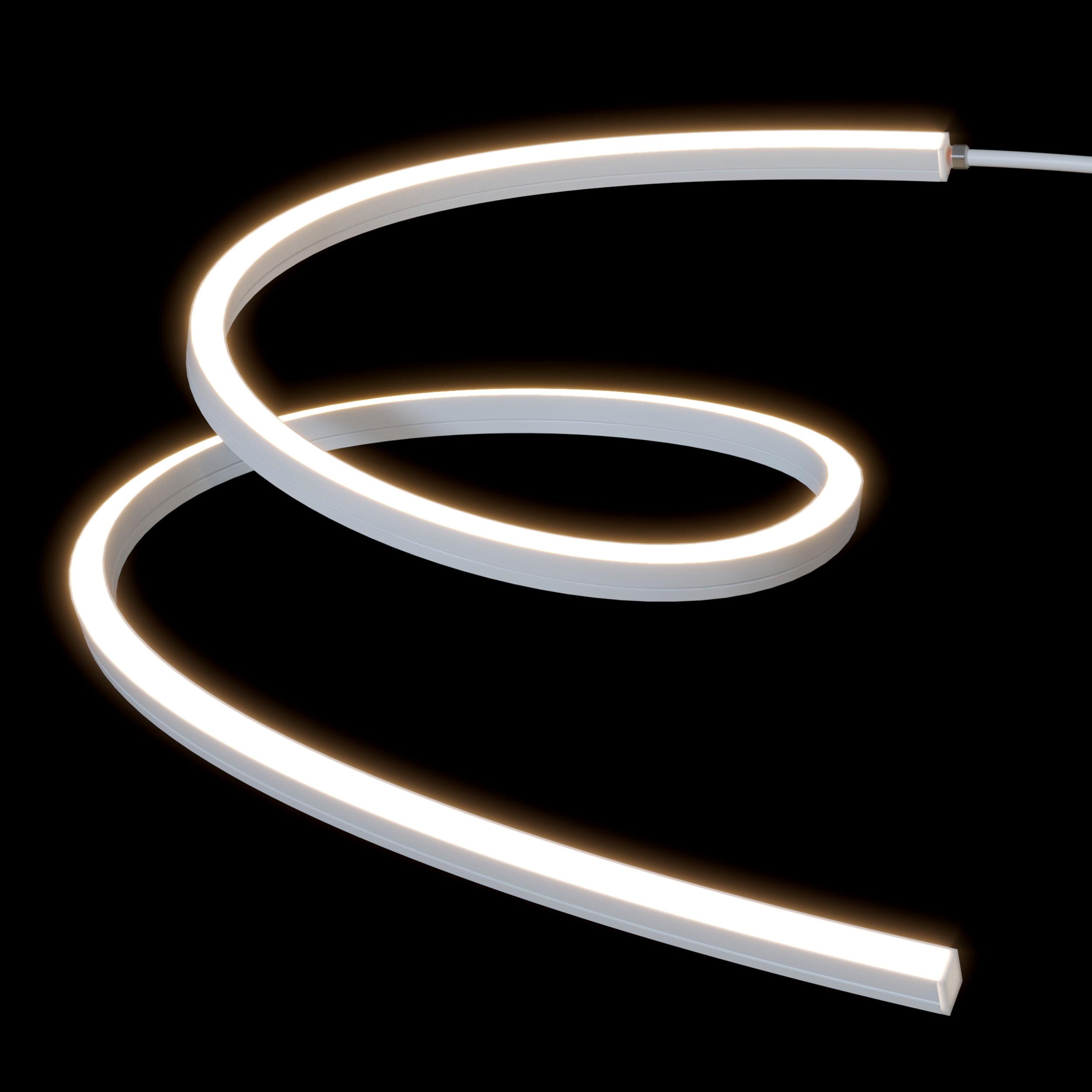

Small, flexible architectural light that bends in all directions to fit any space.
Water resistant with precision light quality and full diffusion for a dotless look.
Product Note: Spools come with an IP67 rating; when trimmed and re-capped in the field the rating becomes IP65.
SKU: Select Options Above

Features & Benefits

  • Bends in both directions (top and side) for maximum versatility
  • Small, flexible fixture with no visible dots
  • Water resistant for indoor and outdoor use
  • Factory or field assembly

Product Specs

Cuttable Increments Free Cut
Environment / IP Rating Factory Assembly (IP67), Field Termination (IP65)
Input Voltage 24VDC
Max. Run See Specification Sheet
Warranty 5-Year Limited
Description
LINAIRE® Flex brings linear light to any space. Water resistant and fully diffused for a dotless look, LINAIRE Flex fixtures can be factory– or field–assembled to fit coves, niches, pockets, and other difficult-to-light spaces both indoors and out. Choose between different sizes, bending configurations, color temperatures (CCTs), and outputs to meet the exact needs of your projects. LINAIRE Flex features precision color rendering and high R-values for vivid, accurate lighting in demanding applications.
All Options
SKU Light Beam Angle Input Voltage Lumens / ft. Max. Run Average Lumens (per ft.) Power Option Color (CCT) Length Type Item
DI-24V-M3D-LIN-24-032 120 24VDC 72 Up to 32.8 ft. 100+ Light Engine - 32.8 ft. spool 2400K 32.8 ft. Spool Mini 3D Bend Light Engine Only
DI-24V-M3D-LIN-27-032 120 24VDC 75 Up to 32.8 ft. 100+ Light Engine - 32.8 ft. spool 2700K 32.8 ft. Spool Mini 3D Bend Light Engine Only
DI-24V-M3D-LIN-30-032 120 24VDC 81 Up to 32.8 ft. 100+ Light Engine - 32.8 ft. spool 3000K 32.8 ft. Spool Mini 3D Bend Light Engine Only
DI-24V-M3D-LIN-35-032 120 24VDC 79 Up to 32.8 ft. 100+ Light Engine - 32.8 ft. spool 3500K 32.8 ft. Spool Mini 3D Bend Light Engine Only
DI-24V-M3D-LIN-40-032 120 24VDC 73 Up to 32.8 ft. 100+ Light Engine - 32.8 ft. spool 4000K 32.8 ft. Spool Mini 3D Bend Light Engine Only
DI-LIN-M3D-DEC 120 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory End Cap
DI-LIN-M3D-MTCH-39 120 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Channel
DI-LIN-M3D-MTCL-2 120 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Clips (2x)
DI-LIN-M3D-SPINE-39 120 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Spine Channel
Recommended Accessories
Power Supplies
OMNIDRIVE® X Dimmable Driver
Versatile driver for most high-performance dimming applications.
  Name

Choose options above to see if this is compatible

View in new tab
