LINAIRE® Flex Side Bend Warm Dim

Top

LINAIRE® Flex Side Bend Warm Dim

LINAIRE® Flex Side Bend Warm Dim
LINAIRE® Flex Side Bend Warm Dim

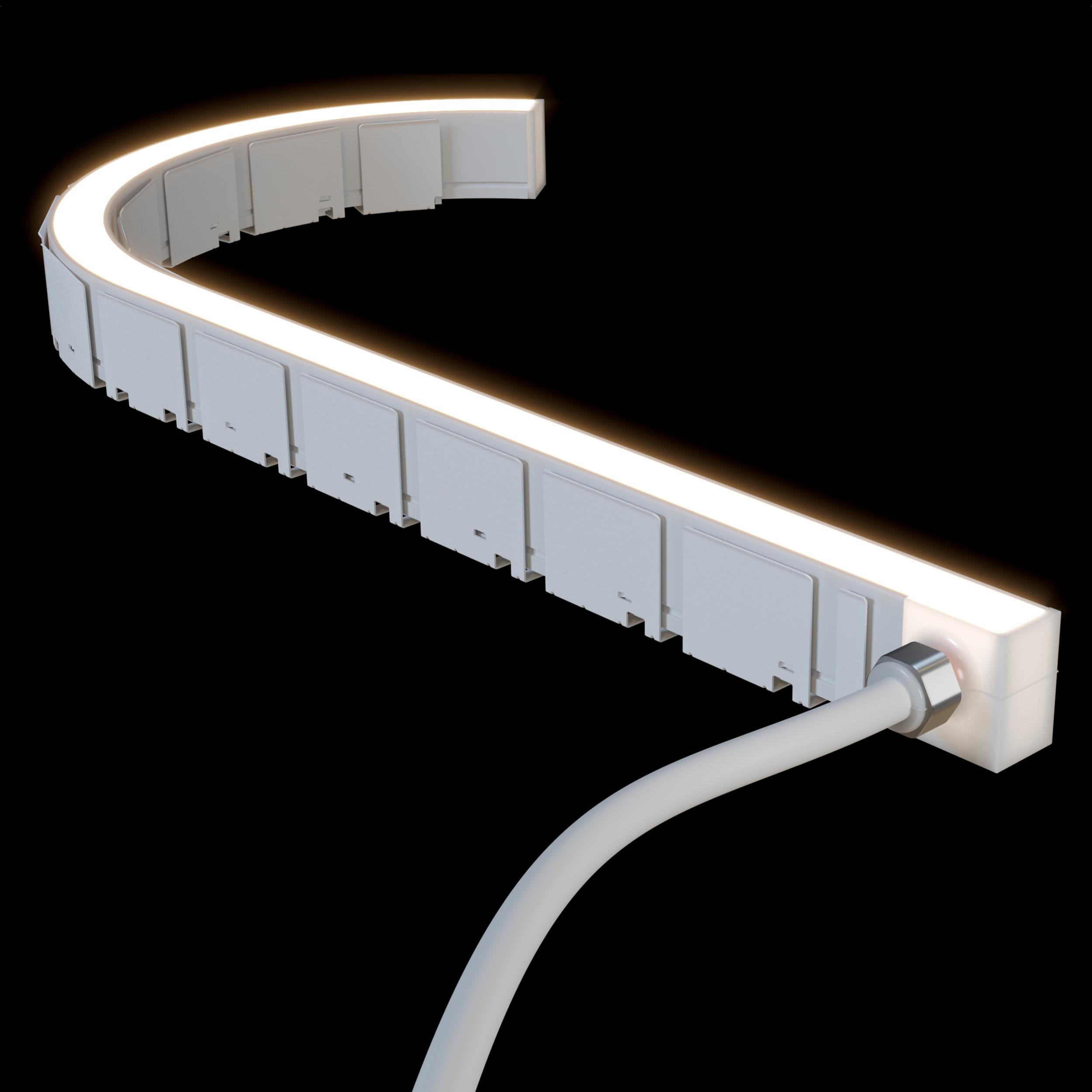

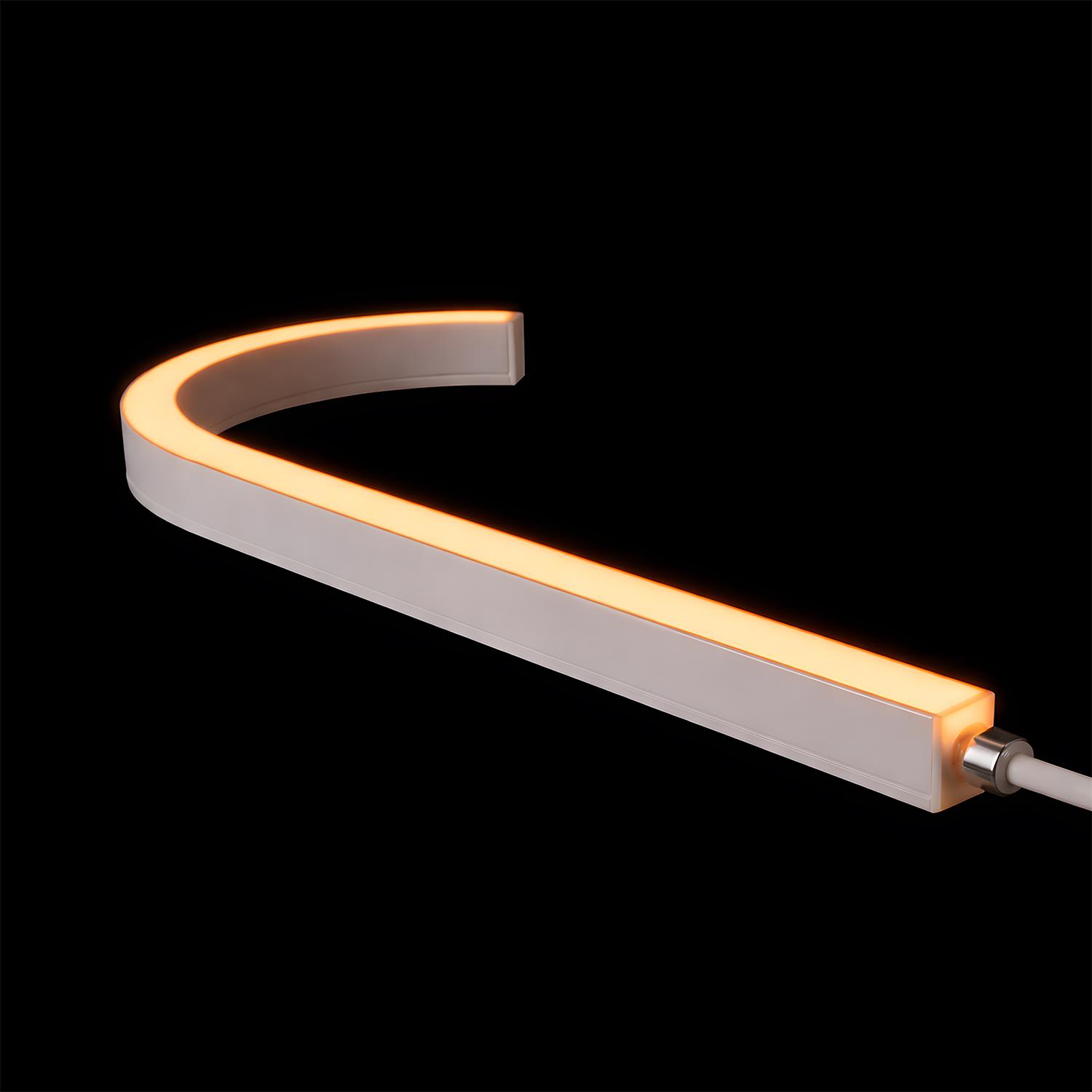

Side-bending architectural light that glows warmer as it dims to replicate the familiar glow of incandescent bulbs. Water resistant with precision light quality and full diffusion for a dotless look.


LINAIRE® Flex comes in static white and with multiple bend profiles, view the full product line offered at our LINAIRE® Flex Family page.



Product Note: Spools come with an IP67 rating; when trimmed and re-capped in the field the rating becomes IP65.
SKU: Select Options Above

Features & Benefits

  • Side-bending for curved architectural details
  • Smooth dimming with a simple 2-wire installation
  • Fully diffused lighting performance across the CCT range (3000K-1800K)
  • Water resistant for indoor and outdoor use, UV stabilized
  • 90+ CRI
  • Factory assembly (IP67)
  • Field adjustable termination (IP65)

Product Specs

CRI 90+
Cuttable Increments 2.81 in.
Environment / IP Rating Factory Assembly (IP67), Field Adjustable Termination (IP65)
Input Voltage 24VDC
Max. Run Up to 16.4 ft.
Warranty 5 Year Limited
Description
Side-bending architectural light that glows warmer as it dims to replicate the familiar glow of incandescent bulbs. Water resistant with precision light quality and full diffusion for a dotless look.
All Options
SKU Light Beam Angle Input Voltage Lumens / ft. Max. Run Average Lumens (per ft.) Power Option Color (CCT) Length Type Item
DI-24V-SE-LIN-WD3018-016 133 Up to 16.4 ft. 130+ Lm/ft. - 16.4ft Spool 3000K - 1800K Light Engine Only
DI-LIN-SE-BFC 120º 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Field Connector - Bottom
DI-LIN-SE-DEC 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending End Cap
DI-LIN-SE-MTCH-39 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Mounting - Channel
DI-LIN-SE-MTCL-2 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Mounting - Clips (2x)
DI-LIN-SE-SDFC 120º 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Field Connector - Side
DI-LIN-SE-SPINE-39 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Mounting - Spine Channel
DI-LIN-SE-STFC 120º 24VDC N/A N/A N/A Accessory Only N/A N/A Side Bending Field Connector - Straight
