Features & Benefits
- Flexible, durable fixture with no visible dots
- Water resistant for indoor and outdoor use
- 90+ CRI
- Long maximum run lengths
- Factory assembly (IP67)
- Field cuttable, free-cut assembly (IP65)
Product Specs
| Cuttable Increments | Free Cut |
|---|---|
| Environment / IP Rating | Factory Assembly (IP67), Field Termination (IP65) |
| Input Voltage | 24VDC |
| Max. Run | Up to 32.8 ft. |
| Warranty | 5 Year Limited |

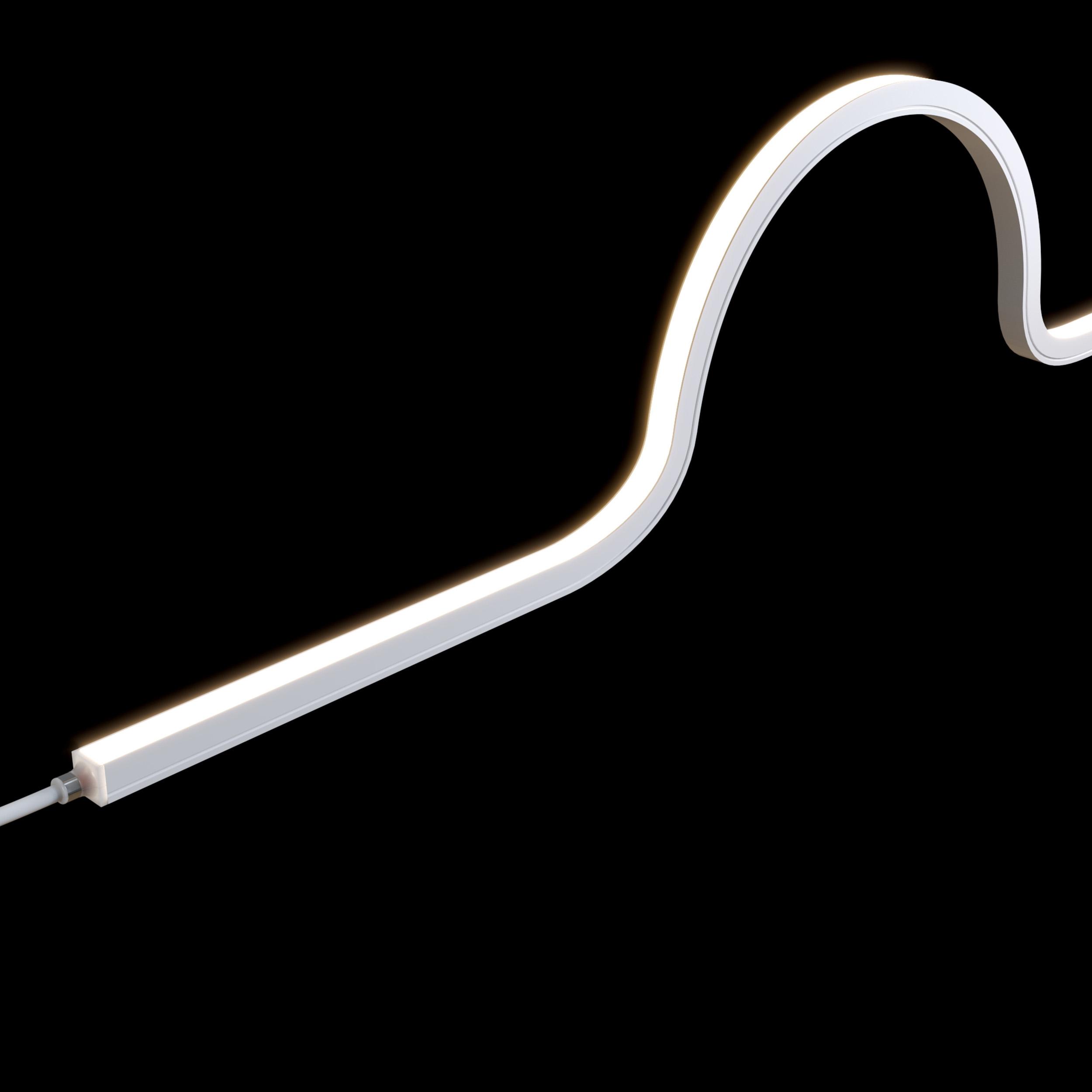

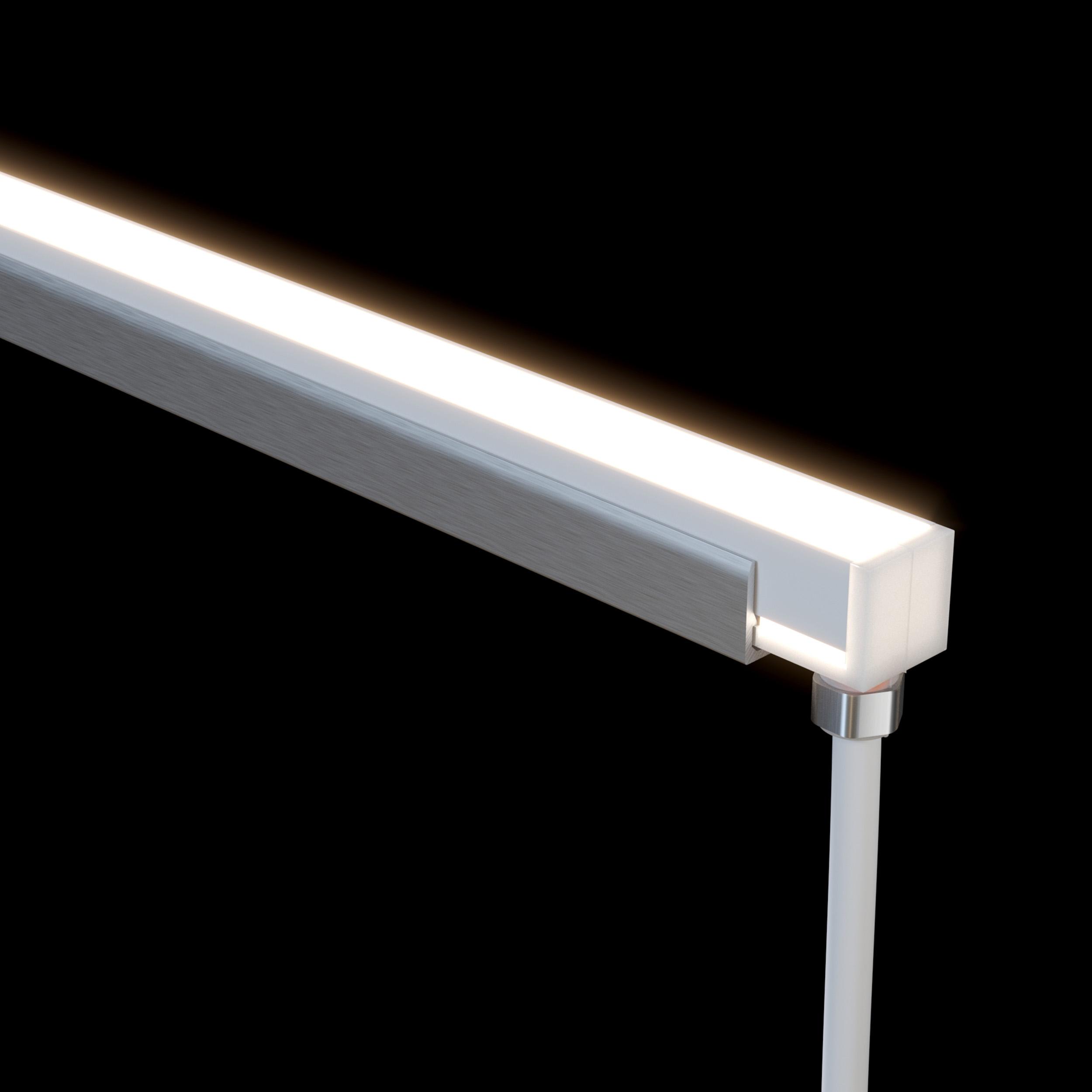

LINAIRE® Flex brings linear light to any space. Water resistant and fully diffused for a dotless look, LINAIRE Flex fixtures can be factory– or field–assembled to fit coves, niches, pockets, and other difficult-to-light spaces both indoors and out. Choose between different sizes, bending configurations, color temperatures (CCTs), and outputs to meet the exact needs of your projects. LINAIRE Flex features precision color rendering and high R-values for vivid, accurate lighting in demanding applications.
| SKU | Light Beam Angle | Input Voltage | Lumens / ft. | Max. Run | Average Lumens (per ft.) | Power Option | Color (CCT) | Length | Type | Item |
|---|---|---|---|---|---|---|---|---|---|---|
| DI-24V-TE-LIN-24-032 | 120º | 24VDC | 112 | Up to 32.8 ft. | 90+ | 100+ Lm/ft. - 32.8 ft. spool | 2400K | 32.8 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN-27-032 | 120º | 24VDC | 115 | Up to 32.8 ft. | 90+ | 100+ Lm/ft. - 32.8 ft. spool | 2700K | 32.8 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN-30-032 | 120º | 24VDC | 116 | Up to 32.8 ft. | 90+ | 100+ Lm/ft. - 32.8 ft. spool | 3000K | 32.8 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN-35-032 | 120º | 24VDC | 122 | Up to 32.8 ft. | 90+ | 100+ Lm/ft. - 32.8 ft. spool | 3500K | 32.8 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN-40-032 | 120º | 24VDC | 121 | Up to 32.8 ft. | 90+ | 100+ Lm/ft. - 32.8 ft. spool | 4000K | 32.8 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN3-24-016 | 120º | 24VDC | 333 | Up to 16.4 ft. | 300+ | 300+ Lm/ft. - 16.4 ft. spool | 2400K | 16.4 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN3-27-016 | 120º | 24VDC | 340 | Up to 16.4 ft. | 300+ | 300+ Lm/ft. - 16.4 ft. spool | 2700K | 16.4 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN3-30-016 | 120º | 24VDC | 350 | Up to 16.4 ft. | 300+ | 300+ Lm/ft. - 16.4 ft. spool | 3000K | 16.4 ft. Spool | Top Bending | Light Engine Only |
| DI-24V-TE-LIN3-35-016 | 120º | 24VDC | 361 | Up to 16.4 ft. | 300+ | 300+ Lm/ft. - 16.4 ft. spool | 3500K | Link Connector | Top Bending | Light Engine Only |
| DI-24V-TE-LIN3-40-016 | 120º | 24VDC | 368 | Up to 16.4 ft. | 300+ | 300+ Lm/ft. - 16.4 ft. spool | 4000K | 16.4 ft. Spool | Top Bending | Light Engine Only |
| DI-LIN-TE-BFC | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Field Connector - Bottom |
| DI-LIN-TE-DEC | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | End Cap | |
| DI-LIN-TE-MTCH-39 | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Mounting - Channel | |
| DI-LIN-TE-MTCL-2 | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Mounting - Clips (2x) | |
| DI-LIN-TE-SDFC | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Field Connector - Side |
| DI-LIN-TE-SPINE-39 | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Mounting - Spine Channel | |
| DI-LIN-TE-STFC | 120º | 24VDC | N/A | N/A | N/A | Accessory Only | N/A | N/A | Top Bending | Field Connector - Straight |
