SQUIGGLY™ PIXEL RGB

Top

SQUIGGLY™ PIXEL RGB

SQUIGGLY™ PIXEL RGB

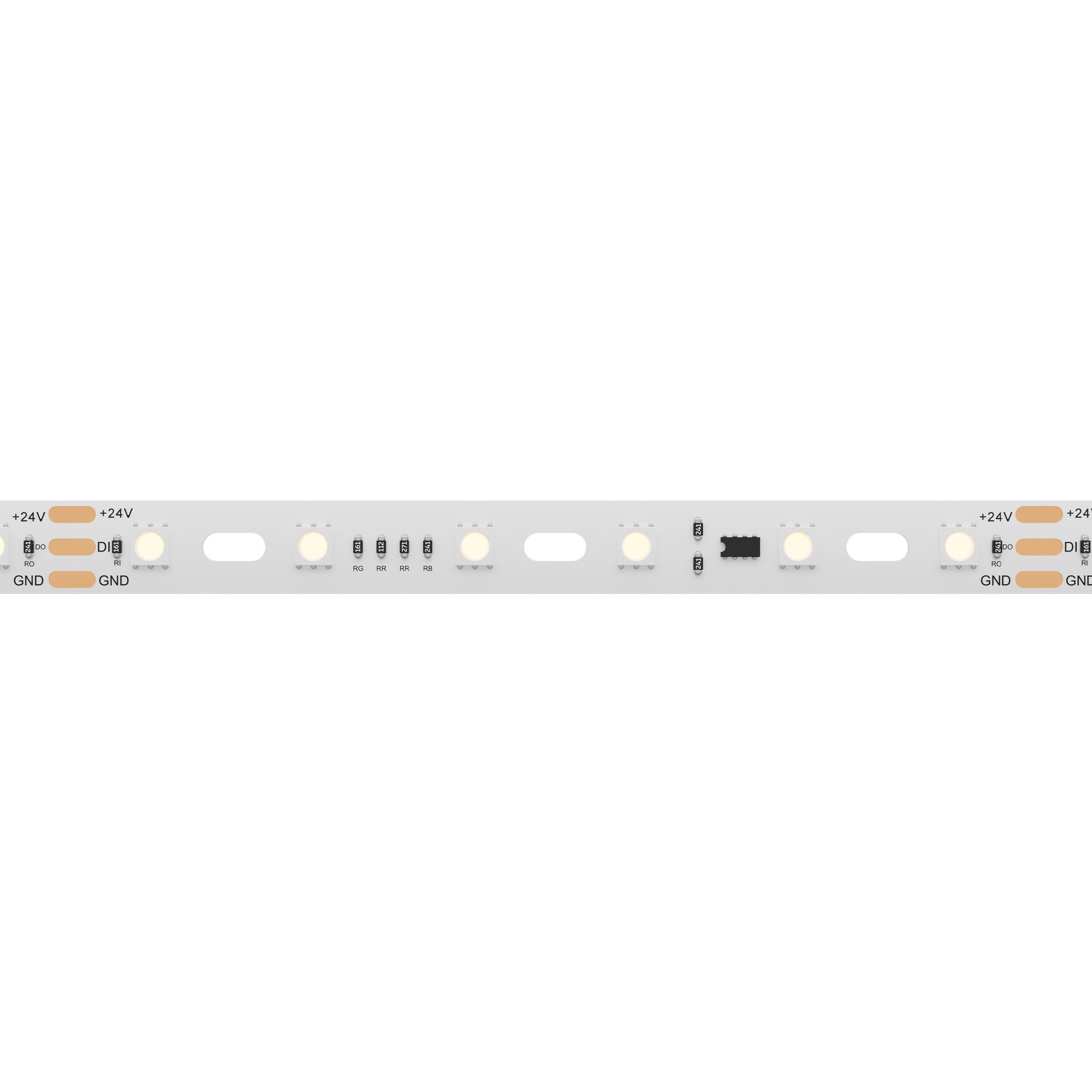

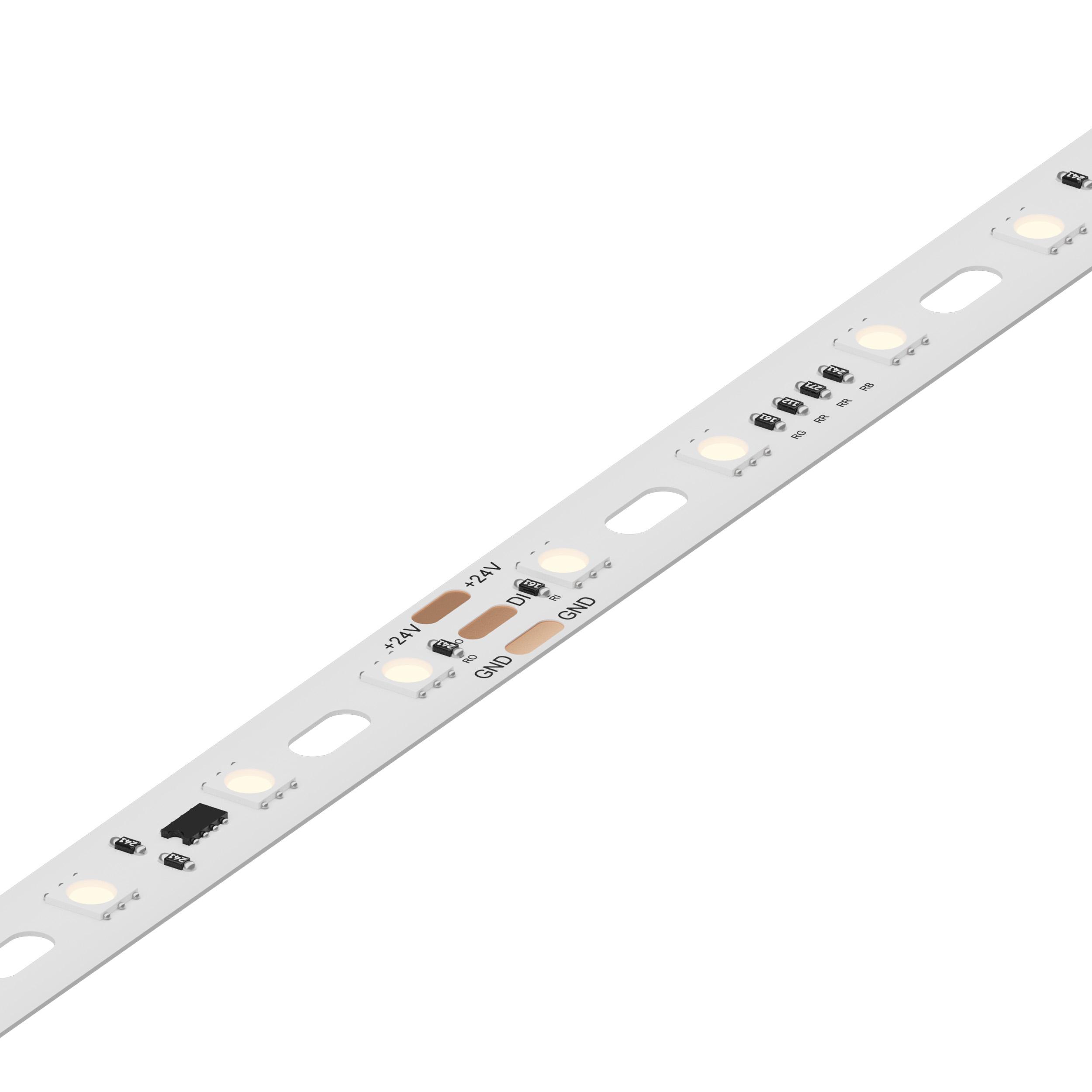

RGB tape light with multi-axis flexibility, designed for intricate signs, lettering, light boxes, stage lining, and architectural accents. Create dynamic pixel patterns with chasing effects driven by a pixel control system.
SKU: Select Options Above

Features & Benefits

  • Durable articulation points for multi-directional bending
  • 2.7 W/ft.
  • 16.4 ft. maximum run

Product Specs

Certifications UL Listed
CRI 90+
Environment / IP Rating Indoor / Damp Location (IP20)
Max. Run Up to 16.4 ft.
Warranty 7 Year Limited
Description
RGB tape light with multi-axis flexibility, designed for intricate signs, lettering, light boxes, stage lining, and architectural accents. Create dynamic pixel patterns with chasing effects driven by a pixel control system.
All Options
SKU Environment / IP Rating Input Voltage Lumens / ft. Max. Run Color (CCT) Length
DI-24V-SQ2-RGB-PIX-016 Indoor / Damp Location (IP20) 24VDC 70 Up to 16.4 ft. RGB 16.4 ft. Spool
Recommended Accessories
Power Supplies
HLG Series MEAN WELL Driver
The MEAN WELL HLG series of LED power supplies, available in 24V options ranging from 150W to 600W, offers high-efficiency and reliable power solutions for various lighting applications. These power supplies are designed with robust features such as active PFC, wide input voltage ranges, and multiple protection mechanisms, ensuring optimal performance and safety.
  Name
View in new tab
Color Controllers
DMX 4 Channel Decoder
Translates a DMX signal into the PWM control signal used by RGB LED lights.
  Name
Qty
Nicolaudie STICK-DE3 DMX LED Controller
Store up to 500 scenes across 10 separate zones with a full-color display.
  Name
Qty
DMX512 25-Channel Decoder with RDM
Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 25-channel decoder featuring a digital display for fast and easy connections, has drive capacity up to 480W per receiver.
  Name
Qty
DMX512 5-Channel Decoder with RDM
Control low-voltage LED lighting with flicker-free performance and compatible with 4-6 wire light engines; it can be used as a standalone/master controller or companion decoder. The 5-channel decoder featuring a digital display for fast and easy connections, has drive capacity up to 480W per receiver at 24V.
  Name
Qty
Nicolaudie Easy Stand Alone DMX LED Color Controller
This fully customized DMX color control for color-changing LED lights combines sophisticated control with ease of use.
  Name
Qty
TOUCHDIAL™ Control System
NEW & EXPANDED ACCESSORIES The new TOUCHDIAL™ zone control system controls single color dimming, tunable white, and color changing LED lighting via mobile device and additional TOUCHDIAL controls.
