LINAIRE® Flex 3D Bend Warm Dim

Top

LINAIRE® Flex 3D Bend Warm Dim

LINAIRE® Flex 3D Bend Warm Dim
LINAIRE® Flex 3D Bend Warm Dim

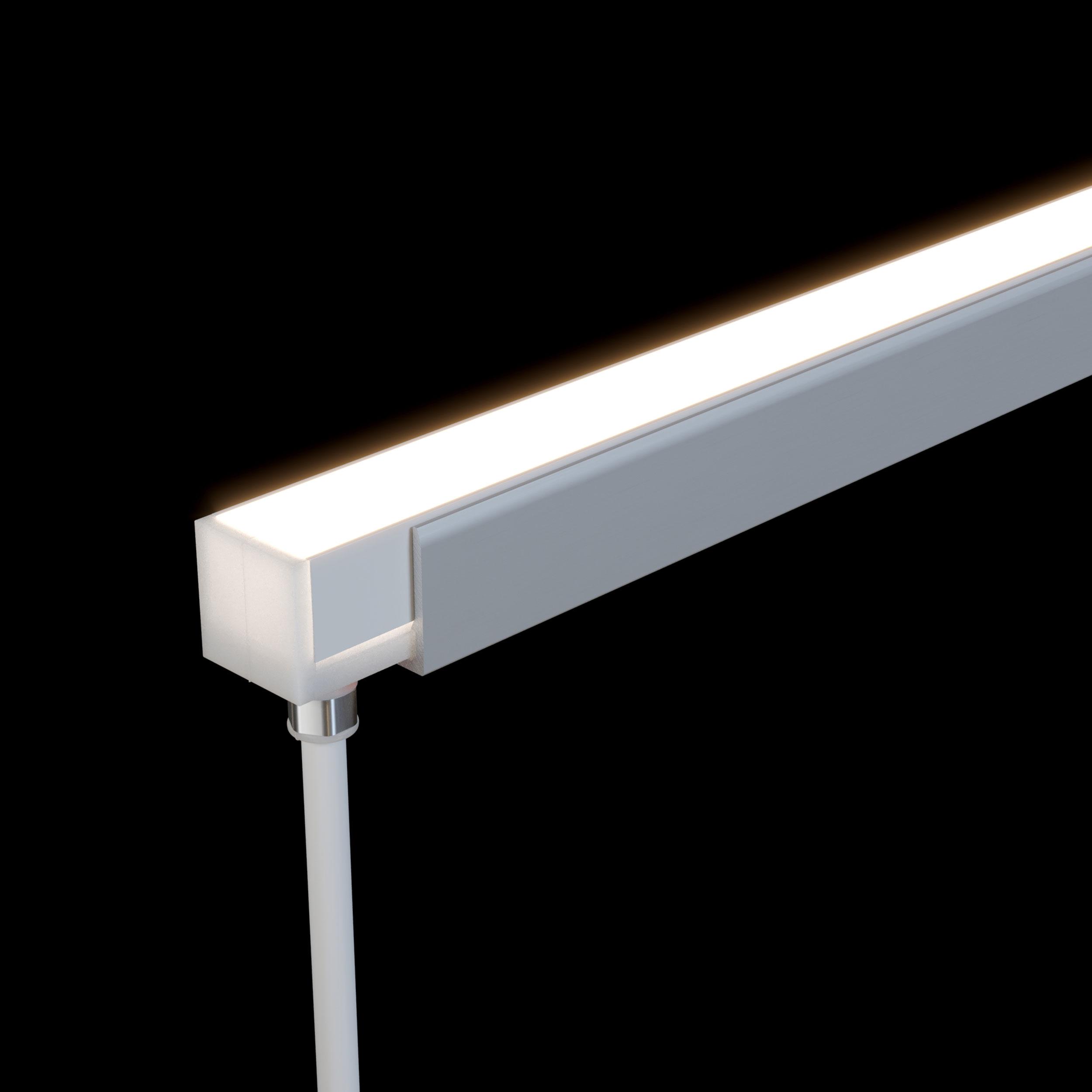

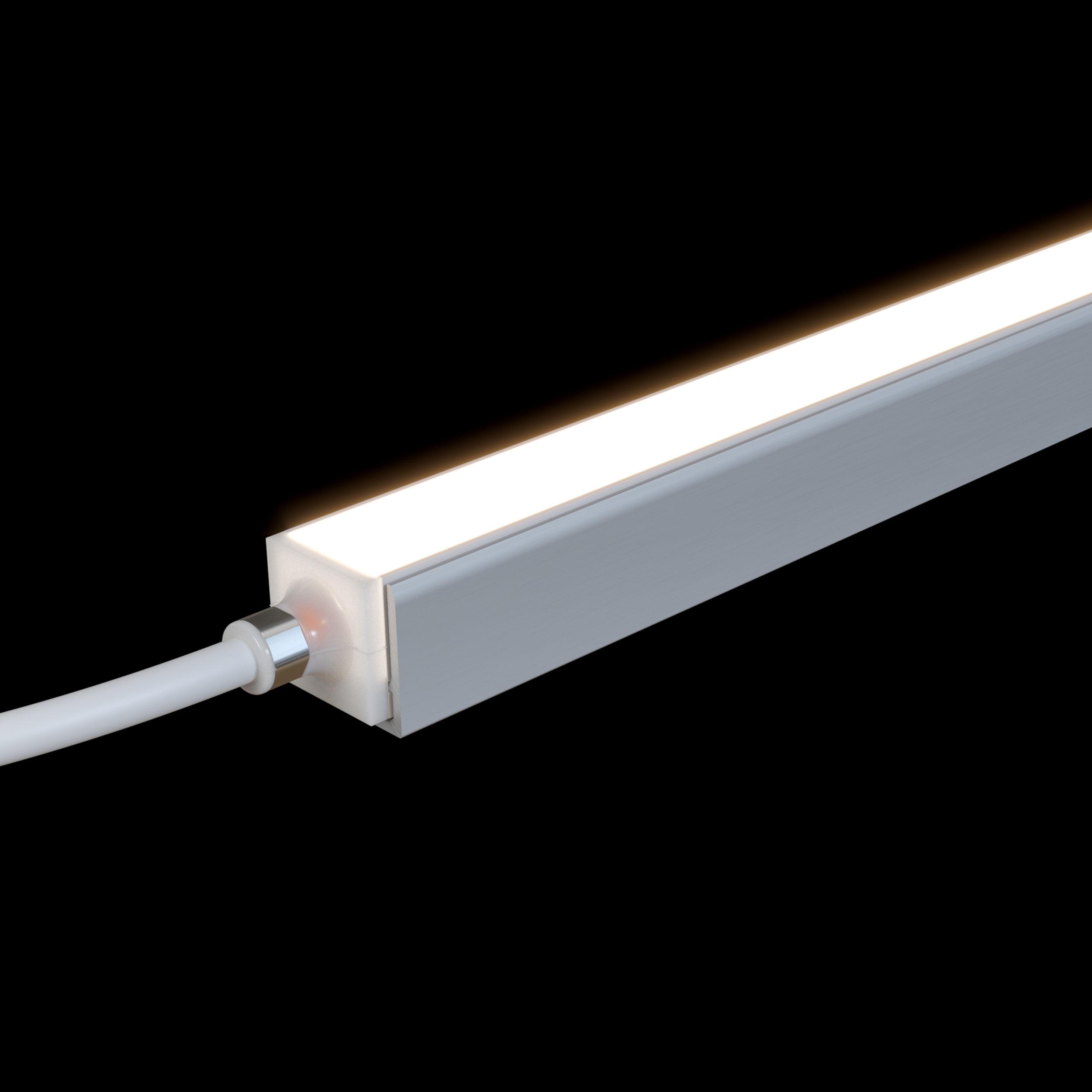

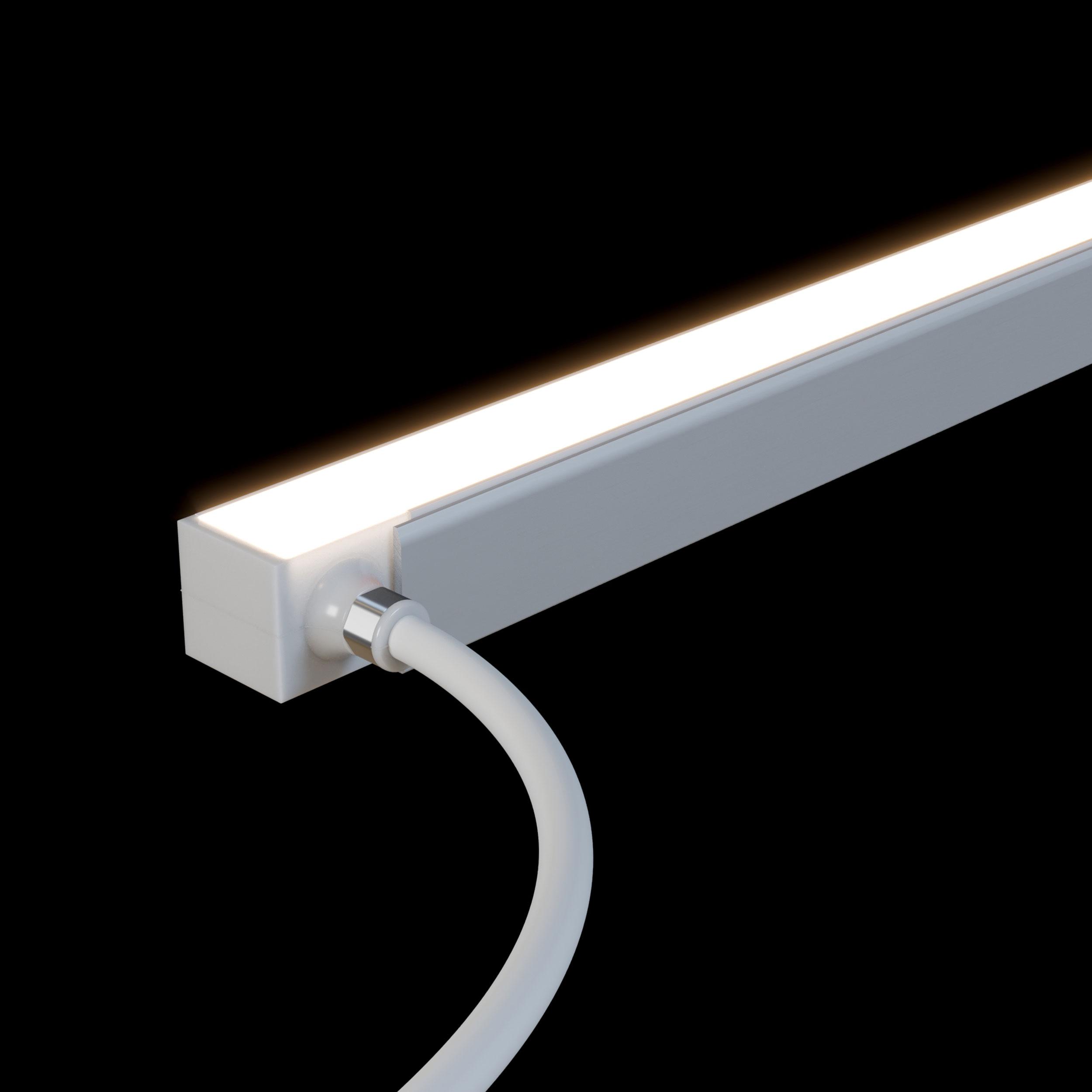

A 3D-bendable architectural light that glows warmer as it dims, to replace the familiar glow of incandescent bulbs. Water resistant with precision light quality and full diffusion for a dotless look.
Product Note: Spools come with an IP67 rating; when trimmed and re-capped in the field the rating becomes IP65.


LINAIRE® Flex comes in Static White, Tunable White RGBW and with multiple bend profiles, view the full product line offered at our LINAIRE® Flex Family page.




Details & Downloads
SKU: Select Options Above

Features & Benefits

  • Bends in both directions (top and side) for maximum versatility
  • Smooth dimming with a simple 2-wire installation
  • Fully diffused lighting performance across the CCT range (3000K-1800K)
  • 90+ CRI
  • Water resistant for indoor and outdoor use, UV stabilized
  • Factory assembly (IP67)
  • Field adjustable termination (IP65)

Product Specs

Cuttable Increments 2.81 in.
Environment / IP Rating Factory Assembly (IP67), Field Termination (IP65)
Input Voltage 24VDC
Max. Run Up to 16.4 ft.
Warranty 5 Year Limited
Description
A 3D-bendable architectural light that glows warmer as it dims, to replace the familiar glow of incandescent bulbs. Water resistant with precision light quality and full diffusion for a dotless look.
All Options
SKU Input Voltage Lumens / ft. Max. Run Average Lumens (per ft.) Power Option Color (CCT) Length Type Item
DI-24V-3D-LIN-WD3018-016 202 Up to 32.8 ft. 200+ Lm/ft. - 16.4 ft. spool 3000K - 1800K Light Engine Only
DI-LIN-3D-DEC 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory End Cap
DI-LIN-3D-MTCH-39 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Channel
DI-LIN-3D-MTCL-2 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Clips (2x)
DI-LIN-3D-SPINE-39 24VDC N/A N/A N/A Accessory Only N/A N/A Accessory Mounting - Spine Channel
Recommended Accessories
Power Supplies
OMNIDRIVE® X Dimmable Driver
Versatile driver for most high-performance dimming applications.
  Name

Choose options above to see if this is compatible
