NEON BLAZE™

Top

NEON BLAZE™

NEON BLAZE™

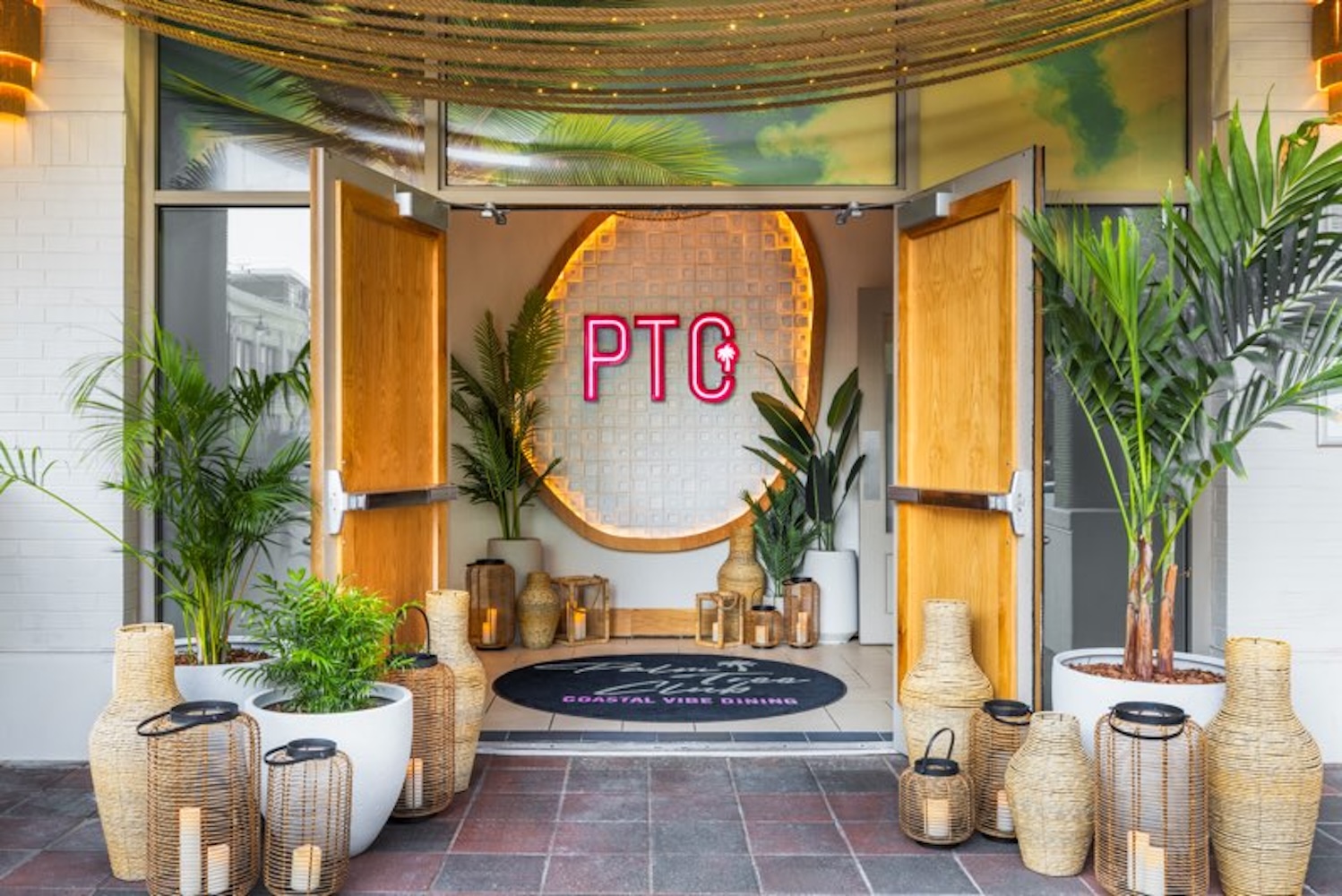

Inspiration Gallery

NEON BLAZE™
Diffused, neon-like LED lighting with top-bending and side-bending options. Available in static white and colors, and suitable for wet locations (IP65). Details & Downloads
SKU: Select Options Above

Features & Benefits

  • Tight bend radius
  • Mimics traditional neon
  • Lettering or accent lighting
  • Two flexible styles

Downloads

Product Specs

Light Beam Angle See Specification Sheet
Certifications UL Listed 2108
Connection Type Hard-Wired
Input Voltage 24VDC
Max. Run up to 65.6 ft.
Warranty 5 Year Limited
Description

NEON BLAZE™ brings the ultimate led neon lighting into your project. With Zero Line Diffusion® technology, LED neon color is saturated from end to end. Choose from multiple outputs in this superior flexible linear lighting in lengths up to 65 feet in the most popular colors. Field cuttable and easy to install with multiple mounting options. NEON BLAZE™ is the superior option for applications that call for LED strip light or LED rope light

See the NEON BLAZE RGB color-changing page here.



2019 SAPPHIRE AWARD FINALIST
All Options
SKU Light Beam Angle Lumens / ft. Max. Run Power Option Color (CCT) Length Type
DI-24V-SE-NBL1-27-65 62 Up to 65.5 ft. 1.2W / ft. 2700K (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-30-65 65 Up to 65.5 ft. 1.2W / ft. 3000K (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-35-65 60 Up to 65.5 ft. 1.2W / ft. 3500K (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-63-65 59 Up to 65.5 ft. 1.2W / ft. 6300K (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-BL-65 6 Up to 65.5 ft. 1.2W / ft. Blue (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-GL-65 31 Up to 65.5 ft. 1.2W / ft. Amber (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-GN-65 30 Up to 65.5 ft. 1.2W / ft. Green (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-PK-65 17 Up to 65.5 ft. 1.2W / ft. Pink (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL1-RD-65 11 Up to 65.5 ft. 1.2W / ft. Red (1.2W / ft.) 65.6 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-27-32 134 Up to 32.8 ft. 2.4W / ft. 2700K (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-30-32 146 Up to 32.8 ft. 2.4W / ft. 3000K (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-35-32 120 Up to 32.8 ft. 2.4W / ft. 3500K (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-42-32 See Specification Sheet See Spec Sheet up to 65.6 ft. 4200K (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-63-32 116 Up to 32.8 ft. 2.4W / ft. 6300K (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-BL-32 12 Up to 32.8 ft. 2.4W / ft. Blue (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-GL-32 61 Up to 32.8 ft. 2.4W / ft. Amber (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-PK-32 37 Up to 32.8 ft. 2.4W / ft. Pink (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL2-RD-32 21 Up to 32.8 ft. 2.4W / ft. Red (2.4W / ft.) 32.8 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-27-16 208 Up to 16.4 ft. 4.4W / ft. 2700K (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-30-16 198 Up to 16.4 ft. 4.4W / ft. 3000K (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-35-16 195 Up to 16.4 ft. 4.4W / ft. 3500K (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-63-16 173 Up to 16.4 ft. 4.4W / ft. 6300K (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-BL-16 18 Up to 16.4 ft. 4.4W / ft. Blue (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-GL-16 84 Up to 16.4 ft. 4.4W / ft. Amber (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-GN-16 78 Up to 16.4 ft. 4.4W / ft. Green (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-PK-16 53 Up to 16.4 ft. 4.4W / ft. Pink (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-SE-NBL4-RD-16 34 Up to 16.4 ft. 4.4W / ft. Red (4.4W / ft.) 16.4 ft. Spool Side Bend Lighting
DI-24V-TE-NBL1-27-65 86 Up to 65.5 ft. 1.2W / ft. 2700K (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-30-65 102 Up to 65.5 ft. 1.2W / ft. 3000K (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-35-65 89 Up to 65.5 ft. 1.2W / ft. 3500K (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-63-65 88 Up to 65.5 ft. 1.2W / ft. 6300K (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-BL-65 18 Up to 65.5 ft. 1.2W / ft. Blue (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-GL-65 70 Up to 65.5 ft. 1.2W / ft. Amber (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-GN-65 88 Up to 65.5 ft. 1.2W / ft. Green (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-PK-65 39 Up to 65.5 ft. 1.2W / ft. Pink (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL1-RD-65 31 Up to 65.5 ft. 1.2W / ft. Red (1.2W / ft.) 65.6 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-27-32 173 Up to 32.8 ft. 2.4W / ft. 2700K (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-30-32 219 Up to 32.8 ft. 2.4W / ft. 3000K (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-35-32 178 Up to 32.8 ft. 2.4W / ft. 3500K (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-63-32 174 Up to 32.8 ft. 2.4W / ft. 6300K (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-BL-32 30 Up to 32.8 ft. 2.4W / ft. Blue (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-GL-32 157 Up to 32.8 ft. 2.4W / ft. Amber (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-GN-32 148 Up to 32.8 ft. 2.4W / ft. Green (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-PK-32 93 Up to 32.8 ft. 2.4W / ft. Pink (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL2-RD-32 61 Up to 32.8 ft. 2.4W / ft. Red (2.4W / ft.) 32.8 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-27-16 248 Up to 16.4 ft. 4.4W / ft. 2700K (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-30-16 317 Up to 16.4 ft. 4.4W / ft. 3000K (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-35-16 273 Up to 16.4 ft. 4.4W / ft. 3500K (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-63-16 266 Up to 16.4 ft. 4.4W / ft. 6300K (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-BL-16 37 Up to 16.4 ft. 4.4W / ft. Blue (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-GL-16 184 Up to 16.4 ft. 4.4W / ft. Amber (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-GN-16 151 Up to 16.4 ft. 4.4W / ft. Green (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-PK-16 110 Up to 16.4 ft. 4.4W / ft. Pink (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
DI-24V-TE-NBL4-RD-16 64 Up to 16.4 ft. 4.4W / ft. Red (4.4W / ft.) 16.4 ft. Spool Top Bend Lighting
Recommended Accessories
Power Supplies
Plug-In Adapters
Portable, light-duty plug-in LED drivers (adapters).
  Name

Choose options above to see if this is compatible

View in new tab
Commercial Grade Plug-In Drivers - UL Listed
Diode LED combines the electronics and housing of a heavy duty hard-wired driver with the ease and simplicity of a plug-In adapter making permanent indoor installations quicker and easier.
  Name

Choose options above to see if this is compatible

View in new tab
Constant Voltage LED Drivers

Drivers for on/off or PWM dimming applications.

  Name

Choose options above to see if this is compatible

View in new tab
0-10V Dimmable LED Drivers

  Name

Choose options above to see if this is compatible

View in new tab
Lutron® Hi-lume™ 1% Dimmable LED Drivers
High-performance dimming on Lutron control systems.
  Name

Choose options above to see if this is compatible

View in new tab
Commercial Grade 0-10V Dimmable Drivers
Commercial-Grade 0-10V Dimmable LED Drivers are essential components commercial building applications and retrofits of low voltage LED fixtures in 0-10V control systems.
  Name

Choose options above to see if this is compatible

View in new tab
MikroDIM™ Electronic Dimmable Driver
Compact, dimmable power supply with no minimum load.
  Name

Choose options above to see if this is compatible

View in new tab
OMNIDRIVE® Electronic Dimmable Drivers
Our most popular electronic dimmable (ELV) driver. Superior dimming with and wide compatibility with popular dimmers. UL-listed enclosure optional.
  Name

Choose options above to see if this is compatible

View in new tab
BUNKR™ Commercial-Grade Plug-in Adapter

Heavy-duty plug-in LED driver.

  Name

Choose options above to see if this is compatible

View in new tab
SWITCHEX® Driver and Dimmer Switch
LED driver and dimmer switch combined in a single gang box. Simplify your installation and save labor costs.
Don't miss SWITCHEX®+, the revised and improved innovation built on the patented architecture of the original model and delivers upgraded performance and compatibility with a sleek, modern design.

SWITCHEX®+ Product Page>>
  Name

Choose options above to see if this is compatible

View in new tab
VLM Series Constant Voltage LED Drivers
Compact constant-voltage LED driver.
  Name

Choose options above to see if this is compatible

View in new tab
Wire/Extensions/Connectors
NEON BLAZE™ Connector Accessories

Connection accessories for field-install of the NEON BLAZE™.

  Name

Choose options above to see if this is compatible

View in new tab
