VALENT® MINI

Top

VALENT® MINI

VALENT® MINI
VALENT® MINI

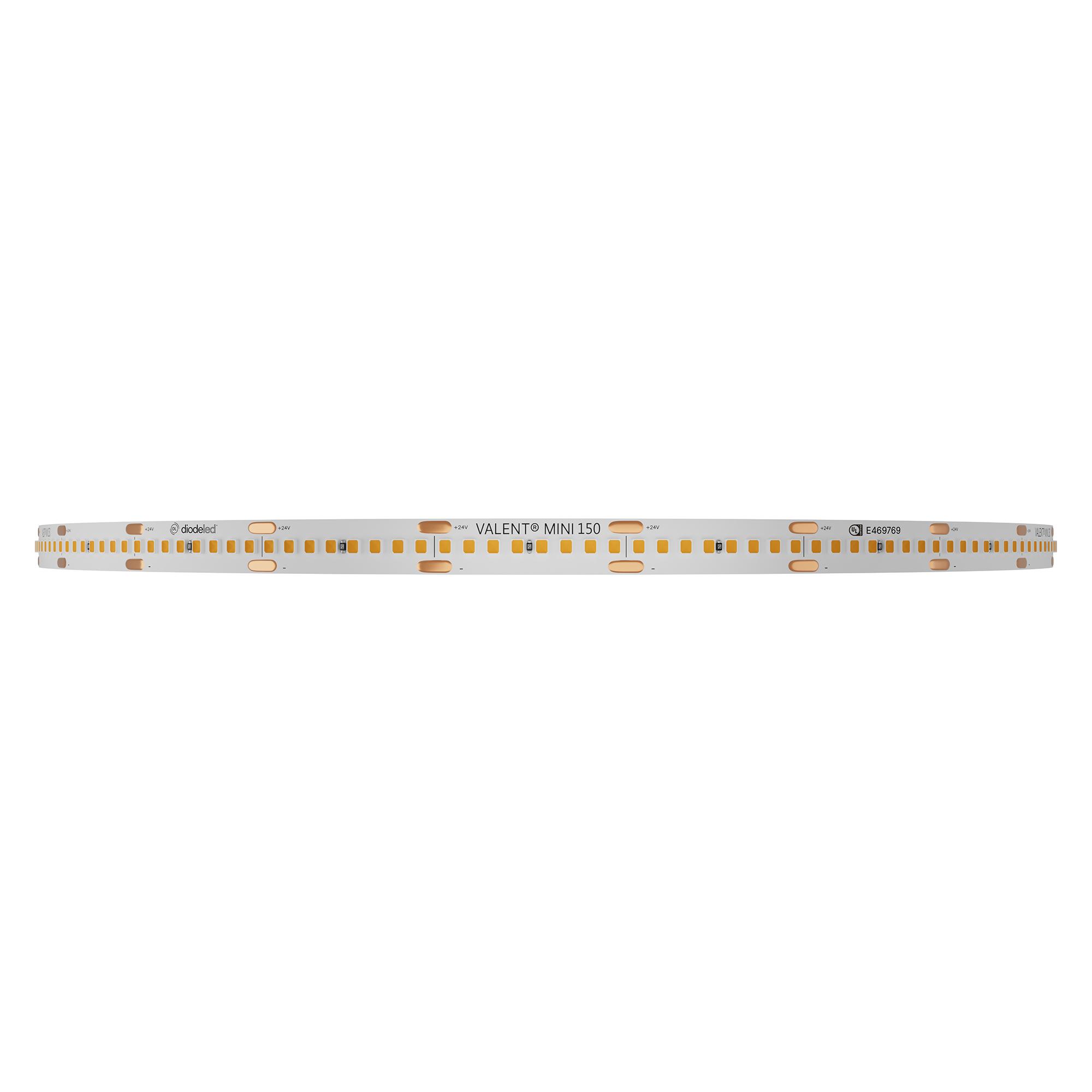

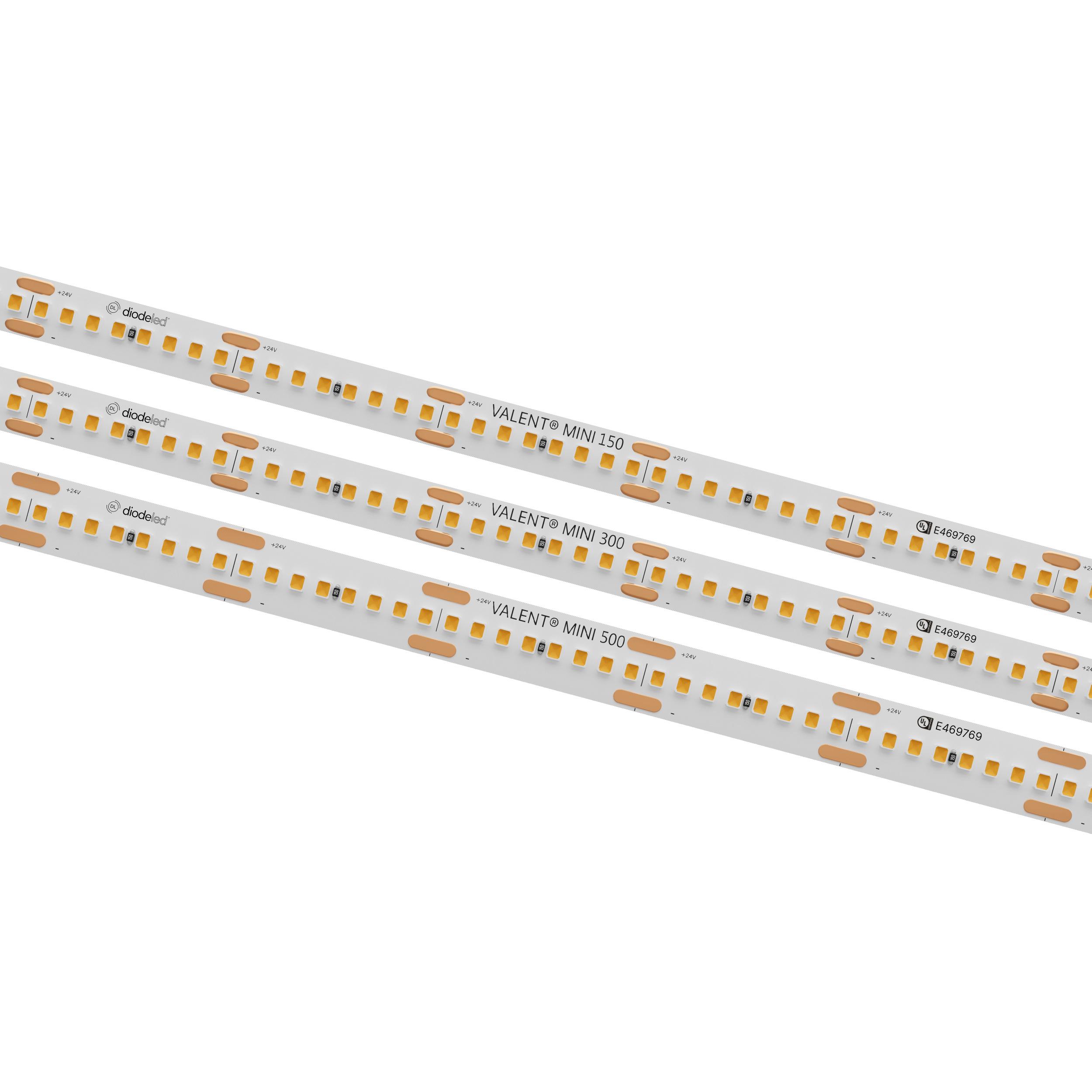

10mm and 8mm high-density tape light with everyday performance.
Provides seamless, dot-free illumination in tight spaces when paired with a channel and lens.

BAA and BABA Logo of Compliance

Visit our Made in America page to learn how VALENT® MINI Tape Light meets BAA and BABA compliance when paired with our A-Series Channels.




VALENT® comes in Wet Location, Warm Dim, Tunable White, RGBW, RGBTW, and High Performance, view the full product line offered at our VALENT® Family page.




Details & Downloads
SKU: Select Options Above

Features & Benefits

  • Slim 8mm &10mm width options
  • Dense LED placement for uninterrupted linear light
  • Multiple output options: 1.46W/ft., 2.93W/ft., 4.5W/ft.
  • Up to 500+ Lumens per foot
  • 90+ CRI
  • 1.09 in. cut points

Downloads

Product Specs

Certifications UL Listed 2108
Connection Type Tape Light
Cuttable Increments 1.09 in.
Environment / IP Rating Indoor / Damp Location (IP20)
Max. Run Up to 66 ft.
Warranty 10 Year Limited
Description
10mm and 8mm high-density tape light with everyday performance. Provides seamless, dot-free illumination in tight spaces when paired with a channel and lens.
All Options
SKU CRI Environment / IP Rating Lumens / ft. Max. Run Average Lumens (per ft.) Color (CCT) Length Type
DI-24V-VL10MN5-20-016 90+ Indoor / Damp Location (IP20) 490 Up to 66 ft. 500+ 2000K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-20-100 90+ Indoor / Damp Location (IP20) 490 Up to 66 ft. 500+ 2000K 100 ft. Spool 10mm
DI-24V-VL10MN5-22-016 90+ Indoor / Damp Location (IP20) 505 Up to 66 ft. 500+ 2200K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-22-100 90+ Indoor / Damp Location (IP20) 505 Up to 66 ft. 500+ 2200K 100 ft. Spool 10mm
DI-24V-VL10MN5-24-016 90+ Indoor / Damp Location (IP20) 548 Up to 66 ft. 500+ 2400K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-24-100 90+ Indoor / Damp Location (IP20) 548 Up to 66 ft. 500+ 2400K 100 ft. Spool 10mm
DI-24V-VL10MN5-27-016 90+ Indoor / Damp Location (IP20) 571 Up to 66 ft. 500+ 2700K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-27-100 90+ Indoor / Damp Location (IP20) 571 Up to 66 ft. 500+ 2700K 100 ft. Spool 10mm
DI-24V-VL10MN5-30-016 90+ Indoor / Damp Location (IP20) 592 Up to 66 ft. 500+ 3000K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-30-100 90+ Indoor / Damp Location (IP20) 592 Up to 66 ft. 500+ 3000K 100 ft. Spool 10mm
DI-24V-VL10MN5-35-016 90+ Indoor / Damp Location (IP20) 595 Up to 66 ft. 500+ 3500K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-35-100 90+ Indoor / Damp Location (IP20) 595 Up to 66 ft. 500+ 3500K 100 ft. Spool 10mm
DI-24V-VL10MN5-40-016 90+ Indoor / Damp Location (IP20) 610 Up to 66 ft. 500+ 4000K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-40-100 90+ Indoor / Damp Location (IP20) 610 Up to 66 ft. 500+ 4000K 100 ft. Spool 10mm
DI-24V-VL10MN5-50-016 90+ Indoor / Damp Location (IP20) 612 Up to 66 ft. 500+ 5000K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-50-100 90+ Indoor / Damp Location (IP20) 612 Up to 66 ft. 500+ 5000K 100 ft. Spool 10mm
DI-24V-VL10MN5-63-016 90+ Indoor / Damp Location (IP20) 614 Up to 66 ft. 500+ 6300K 16.4 ft. Spool 10mm
DI-24V-VL10MN5-63-100 90+ Indoor / Damp Location (IP20) 614 Up to 66 ft. 500+ 6300K 100 ft. Spool 10mm
DI-24V-VL8MN1-20-016 90+ Indoor / Damp Location (IP20) 146 Up to 66 ft. 150+ 2000K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-20-100 90+ Indoor / Damp Location (IP20) 146 Up to 66 ft. 150+ 2000K 100 ft. Spool 8mm
DI-24V-VL8MN1-22-016 90+ Indoor / Damp Location (IP20) 153 Up to 66 ft. 150+ 2200K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-22-100 90+ Indoor / Damp Location (IP20) 153 Up to 66 ft. 150+ 2200K 100 ft. Spool 8mm
DI-24V-VL8MN1-24-016 90+ Indoor / Damp Location (IP20) 167 Up to 66 ft. 150+ 2400K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-24-100 Indoor / Damp Location (IP20) 167 Up to 66 ft. 150+ 2400K 100 ft. Spool 8mm
DI-24V-VL8MN1-27-016 90+ Indoor / Damp Location (IP20) 174 Up to 66 ft. 150+ 2700K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-27-100 90+ Indoor / Damp Location (IP20) 174 Up to 66 ft. 150+ 2700K 100 ft. Spool 8mm
DI-24V-VL8MN1-30-016 90+ Indoor / Damp Location (IP20) 181 Up to 66 ft. 150+ 3000K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-30-100 90+ Indoor / Damp Location (IP20) 181 Up to 66 ft. 150+ 3000K 100 ft. Spool 8mm
DI-24V-VL8MN1-35-016 90+ Indoor / Damp Location (IP20) 184 Up to 66 ft. 150+ 3500K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-35-100 90+ Indoor / Damp Location (IP20) 184 Up to 66 ft. 150+ 3500K 100 ft. Spool 8mm
DI-24V-VL8MN1-40-016 90+ Indoor / Damp Location (IP20) 187 Up to 66 ft. 150+ 4000K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-40-100 90+ Indoor / Damp Location (IP20) 187 Up to 66 ft. 150+ 4000K 100 ft. Spool 8mm
DI-24V-VL8MN1-50-016 90+ Indoor / Damp Location (IP20) 189 Up to 66 ft. 150+ 5000K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-50-100 90+ Indoor / Damp Location (IP20) 189 Up to 66 ft. 150+ 5000K 100 ft. Spool 8mm
DI-24V-VL8MN1-63-016 90+ Indoor / Damp Location (IP20) 191 Up to 66 ft. 150+ 6300K 16.4 ft. Spool 8mm
DI-24V-VL8MN1-63-100 90+ Indoor / Damp Location (IP20) 191 Up to 66 ft. 150+ 6300K 100 ft. Spool 8mm
DI-24V-VL8MN3-20-016 90+ Indoor / Damp Location (IP20) 315 Up to 66 ft. 300+ 2000K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-20-100 90+ Indoor / Damp Location (IP20) 315 Up to 66 ft. 300+ 2000K 100 ft. Spool 8mm
DI-24V-VL8MN3-22-016 90+ Indoor / Damp Location (IP20) 322 Up to 66 ft. 300+ 2200K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-22-100 90+ Indoor / Damp Location (IP20) 322 Up to 66 ft. 300+ 2200K 100 ft. Spool 8mm
DI-24V-VL8MN3-24-016 90+ Indoor / Damp Location (IP20) 351 Up to 66 ft. 300+ 2400K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-24-100 90+ Indoor / Damp Location (IP20) 351 Up to 66 ft. 300+ 2400K 100 ft. Spool 8mm
DI-24V-VL8MN3-27-016 90+ 366 Up to 66 ft. 300+ 2700K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-27-100 90+ Indoor / Damp Location (IP20) 366 Up to 66 ft. 300+ 2700K 100 ft. Spool 8mm
DI-24V-VL8MN3-30-016 90+ Indoor / Damp Location (IP20) 380 Up to 66 ft. 300+ 3000K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-30-100 90+ Indoor / Damp Location (IP20) 380 Up to 66 ft. 300+ 3000K 100 ft. Spool 8mm
DI-24V-VL8MN3-35-016 90+ Indoor / Damp Location (IP20) 385 Up to 66 ft. 300+ 3500K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-35-100 90+ Indoor / Damp Location (IP20) 385 Up to 66 ft. 300+ 3500K 100 ft. Spool 8mm
DI-24V-VL8MN3-40-016 90+ Indoor / Damp Location (IP20) 395 Up to 66 ft. 300+ 4000K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-40-100 90+ Indoor / Damp Location (IP20) 395 Up to 66 ft. 300+ 4000K 100 ft. Spool 8mm
DI-24V-VL8MN3-50-016 90+ Indoor / Damp Location (IP20) 397 Up to 66 ft. 300+ 5000K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-50-100 90+ Indoor / Damp Location (IP20) 397 Up to 66 ft. 300+ 5000K 100 ft. Spool 8mm
DI-24V-VL8MN3-63-016 90+ Indoor / Damp Location (IP20) 400 Up to 66 ft. 300+ 6300K 16.4 ft. Spool 8mm
DI-24V-VL8MN3-63-100 90+ Indoor / Damp Location (IP20) 400 Up to 66 ft. 300+ 6300K 100 ft. Spool 8mm
Recommended Accessories
Power Supplies
OMNIDRIVE® X Dimmable Driver
Versatile driver for most high-performance dimming applications.
  Name

Choose options above to see if this is compatible
