Flexible, durable, all-location fixtures
LINAIRE® Flex is a complete line of diffused, flexible, all-location linear light with flawless performance and free-cut capabilities.
| Static White | RGBW | Tunable White | Warm Dim |
|---|
Save installation time with factory-assembled lengths, ready to install. Or, use our robust, waterproof field connectors to build your lengths on the fly with our Top Bend and Side Bend models.
All options feature 90+ CRI with high R-values, IP67 rating for wet locations, and UV stabilization for outdoor use. UL2108 listed. 5 Year Warranty.

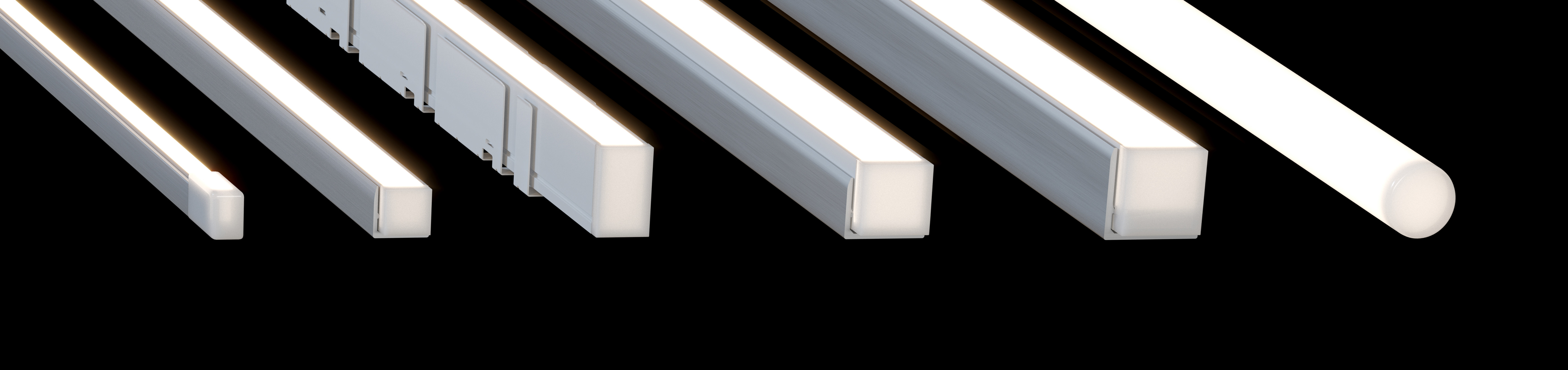

Comparison
| Lumens/ Ft | Watts/ Ft | Max. Run (ft) | Profile Size (in.) | Cut Points | Wire Entry | Factory Assembly | Field Assembly | |
|---|---|---|---|---|---|---|---|---|
| 3D Bend | 150, 375 | 3.2, 4.57 | 32.8 | 0.79x0.79 | Free Cut | Straight, Side, Bottom | ✓ | ⓘ |
| Top Bend | 115, 330 | 2.6, 4.57 | 32.8 | 0.63x0.63 | Free Cut | Straight, Side, Bottom | ✓ | ✓ |
| Side Bend | 75, 190 | 2.6, 4.57 | 32.8 | 0.45x0.79 | Free Cut | Straight, Side, Bottom | ✓ | ✓ |
| Mini 3D Bend | 75 | 1.5 | 32.8 | 0.39x0.39 | Free Cut | Straight, Side, Bottom | ✓ | ⓘ |
| Micro Side Bend | 70 | 1.9 | 16.4 | 0.15x0.31 | 1 in. | Straight | ✓ | ⓘ |
| Tube 360 | 250 | 3.7 | 16.4 | 0.71x0.71 | Free Cut | Straight | ⓧ | ⓘ |
| 3D Bend RGBW | 103 | 4.5 | 16.4 | 0.79x0.79 | 2.46in. | Straight, Side, Bottom | ✓ | ⓘ |
| Top Bend RGBW | 122 | 4.5 | 16.4 | 0.63x0.63 | 1.96in. | Straight, Side, Bottom | ✓ | ⓘ |
| Side Bend RGBW | 75 | 4.5 | 16.4 | 0.45x0.79 | 1.96in. | Straight, Side, Bottom | ✓ | ⓘ |
Fixtures can be fully factory assembled to order.
ⓘ Indicates that the fixture can be trimmed and capped, but that leads must be attached in the factory
If trimmed and capped in field IP rating drops from IP67 to IP65.
ⓧ Assembly not yet available
Video Resources
Static White Options:

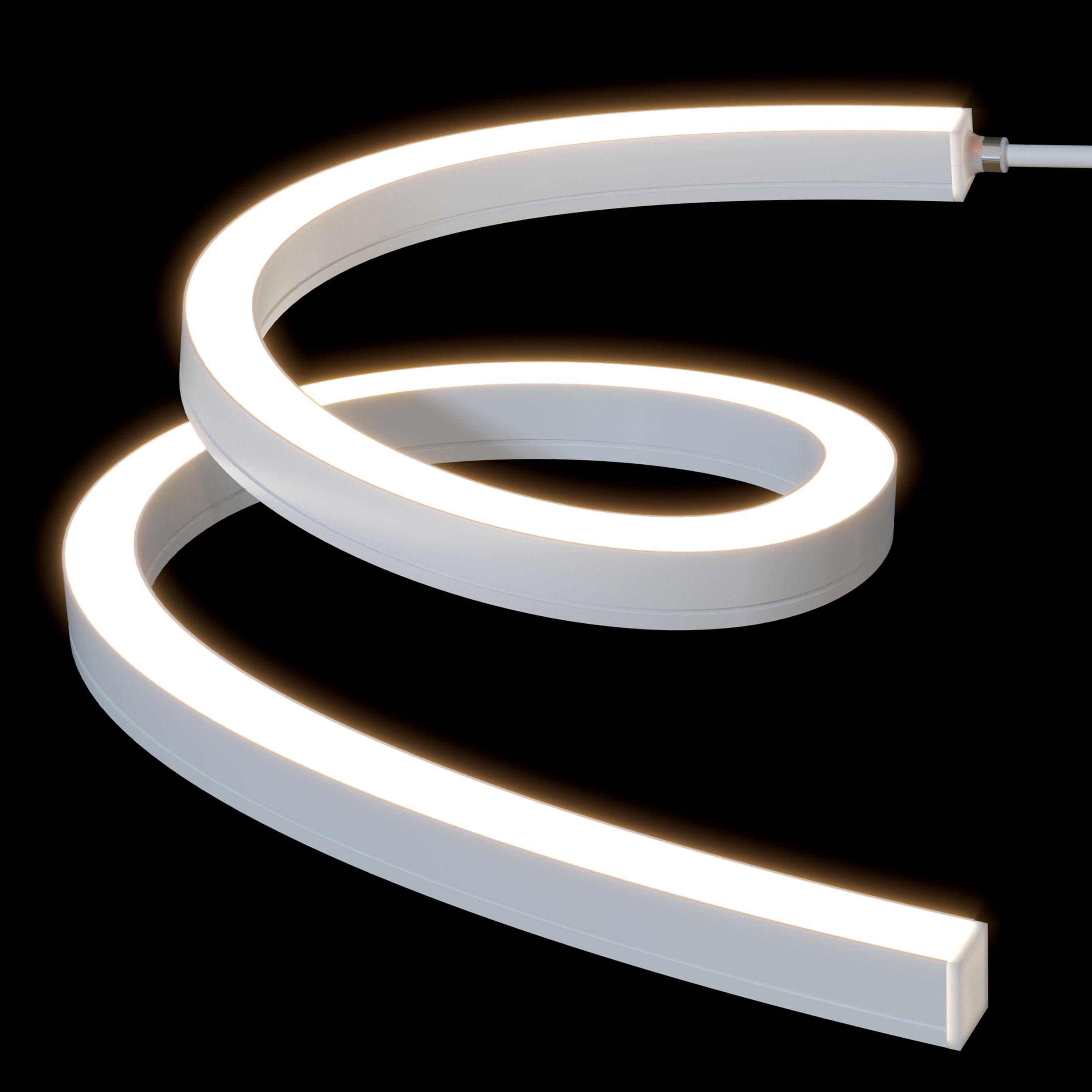

LINAIRE® Flex 3D Bend
Flexible architectural light that bends in all directions to fit any space.
Bendable in all directions simultaneously. Light curved details, including those that bend in multiple dimensions such as spiral staircase handrails and other complex details.
- 5 Year Limited Warranty
- Bends in all directions
- Emits light from top surface
- 3.2 and 4.57 watts per foot options for lumen outputs 400+ Lm/ft.
- Maximum run length up to 32.8 feet
- Factory assembled and field trimmable

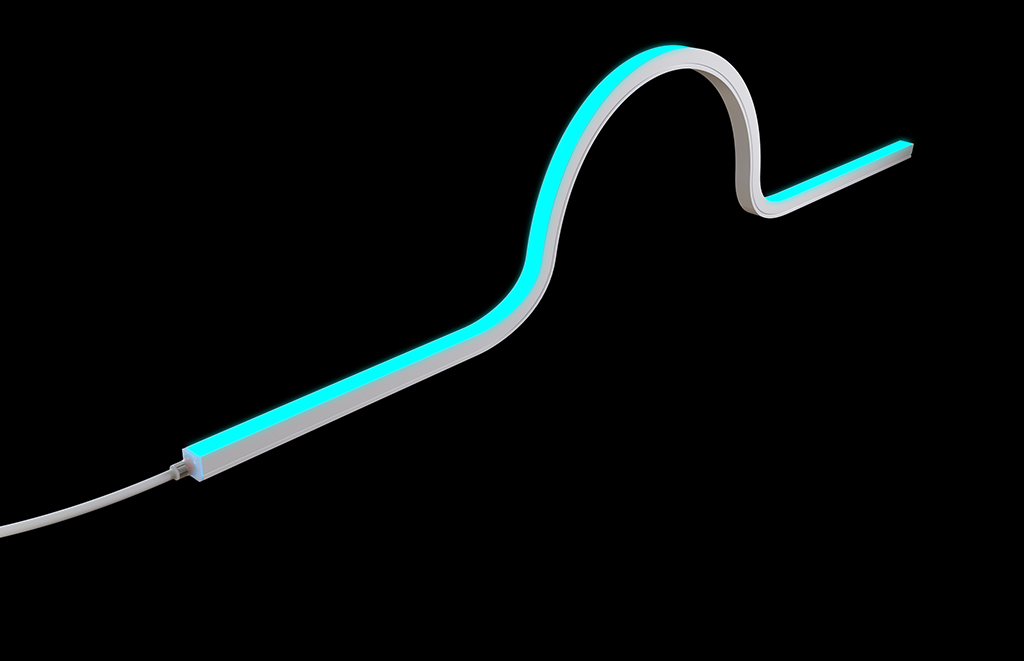

LINAIRE® Flex Top Bend
Top-bending flexible linear light.
Top-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.
- 5 Year Limited Warranty
- Top-bending fixture with no visible dots
- Emits light from top surface
- 2.6 and 4.57 watts per foot for lumen outputs 350+ Lm/ft.
- Maximum run length up to 32.8 ft.
- Factory- or field-assembly

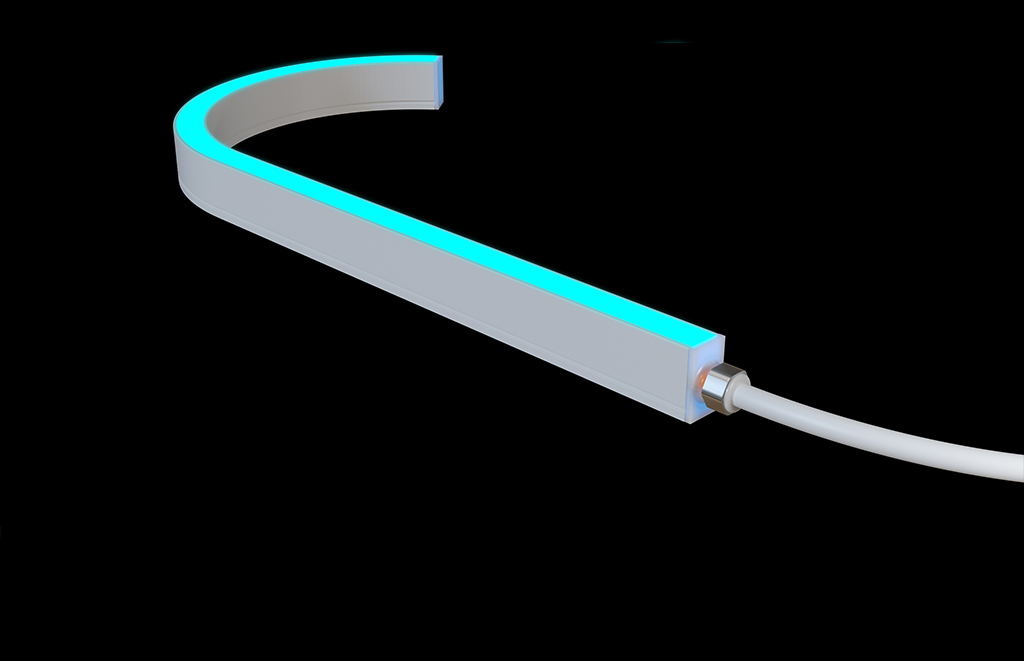

LINAIRE® Flex Side Bend
Side-bending flexible architectural light.
Side-bending flexible fixture with a medium form factor. Light curved details or create long, straight runs of dotless linear light.
- 5 Year Limited Warranty
- Side bending
- Emits light from top surface
- 2.6 and 4.57 watts per foot for lumen outputs 200+ lm/ft
- Maximum run length up to 32.8 ft.
- Factory- or field-assembly
LINAIRE® Flex Mini 3D Bend
Small, flexible architectural light that bends in all directions to fit any space.
Small, flexible architectural light that bends in all directions to fit any space. Light curved details, including those that bend in multiple dimensions.
- 5 Year Limited Warranty
- Bends in all directions
- Emits light from top surface
- 1.5 watts per foot for lumen outputs up to 75 Lm/ft.
- Maximum run length up to 32.8 ft.
- Factory assembled and field trimmable
LINAIRE® Flex Micro Side Bend
Diminutive side-bending architectural light for accents, millwork, and tight spaces.
Bring linear light to very tight spaces and create accents almost anywhere, including in wet locations.
- 5 Year Limited Warranty
- Side-bending
- Emits light from top surface
- 1.9 watts per foot for lumen outputs up to 70 Lm/ft.
- Maximum run length up to 16.4 ft.
- Factory assembled and field trimmable
LINAIRE® Flex Tube 360
Round, flexible architectural light that bends and emits light in all directions.
Tube-like dotless linear light that bends in all directions and glows brightly in all directions. Create striking direct and indirect lighting effects, including in wet locations.
- 5 Year Limited Warranty
- Bends in all directions
- Emits light in all directions
- 3.7 watts per foot for lumen outputs up to 250 Lm/ft.
- Maximum run length up to 16.4 ft.
- Factory- or field-trimmable
RGBW Options:

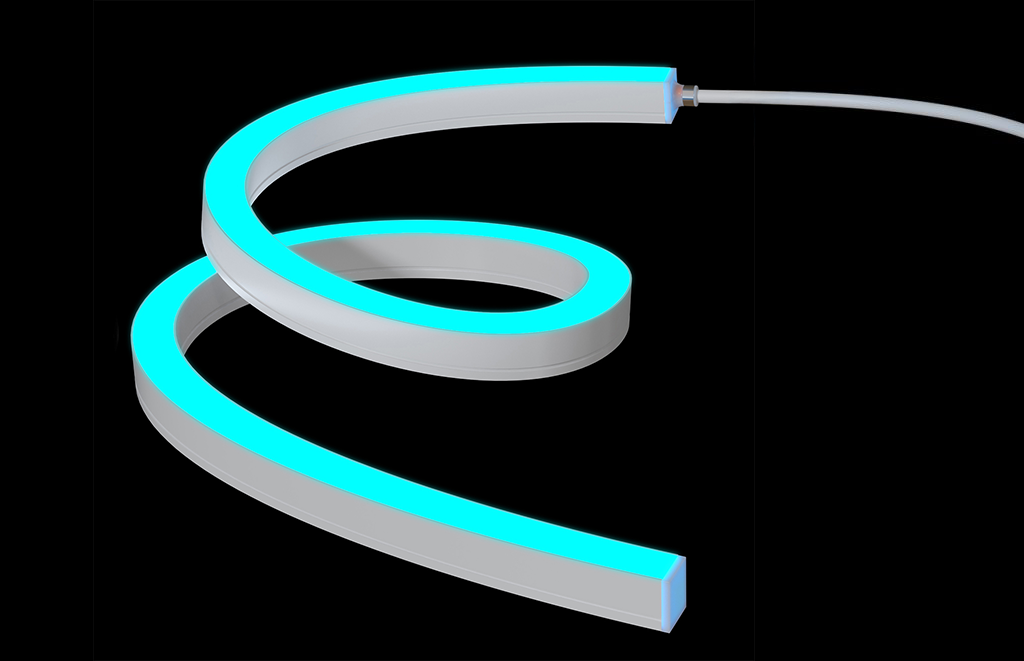

LINAIRE® Flex 3D Bend RGBW
Flexible RGBW linear light that bends in all directions to fit any space.
Water resistant and fully diffused for a dotless look.
- 5 Year Limited Warranty
- Bends in both directions (top and side) for maximum versatility
- Flexible, durable fixture with no visible dots
- Water resistant for indoor and outdoor use
- Full color RGBW
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
LINAIRE® Flex Top Bend RGBW
Top-bending RGBW architectural light with vibrant, full-spectrum output.
Water resistant and fully diffused for a dotless look.
- 5 Year Limited Warranty
- Top-bending architectural profile
- Flexible, durable fixture with no visible dots
- Water resistant for indoor and outdoor use
- 90+ CRI
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
LINAIRE® Flex Side Bend RGBW
Side-bending RGBW architectural light with vibrant, full-spectrum output.
Water resistant and fully diffused for a dotless look.
- 5 Year Limited Warranty
- Side-bending for curved architectural details
- Flexible, durable fixture with no visible dots
- Water resistant for indoor and outdoor use
- Full color RGBW
- 90+ CRI
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
Tunable White Options:
LINAIRE® Flex 3D Bend Tunable White
3D-bendable architectural light with flawless diffusion and adjustable color temperature.
Water resistant with precision light quality and full diffusion for a dotless look and seamless integration into architectural curves.
- 5 Year Limited Warranty
- Bends in both directions (top and side) for maximum versatility
- Precise diffused lighting with no visible LEDs
- Consistent lighting performance to help with natural circadian rhythms
- Water resistant for indoor and outdoor use, UV stabilized
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
LINAIRE® Flex Top Bend Tunable White
Top bend architectural light with flawless diffusion and adjustable color temperature.
Water resistant with precision light quality and full diffusion for a dotless look and seamless integration into architectural curves.
- 5 Year Limited Warranty
- Top-bending architectural profile
- Tunable white control with CCT range from 1800K-4000K
- Consistent and fully diffused lighting performance to help with natural circadian rhythms
- Water resistant for indoor and outdoor use, UV stabilized
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
Warm Dim Options:

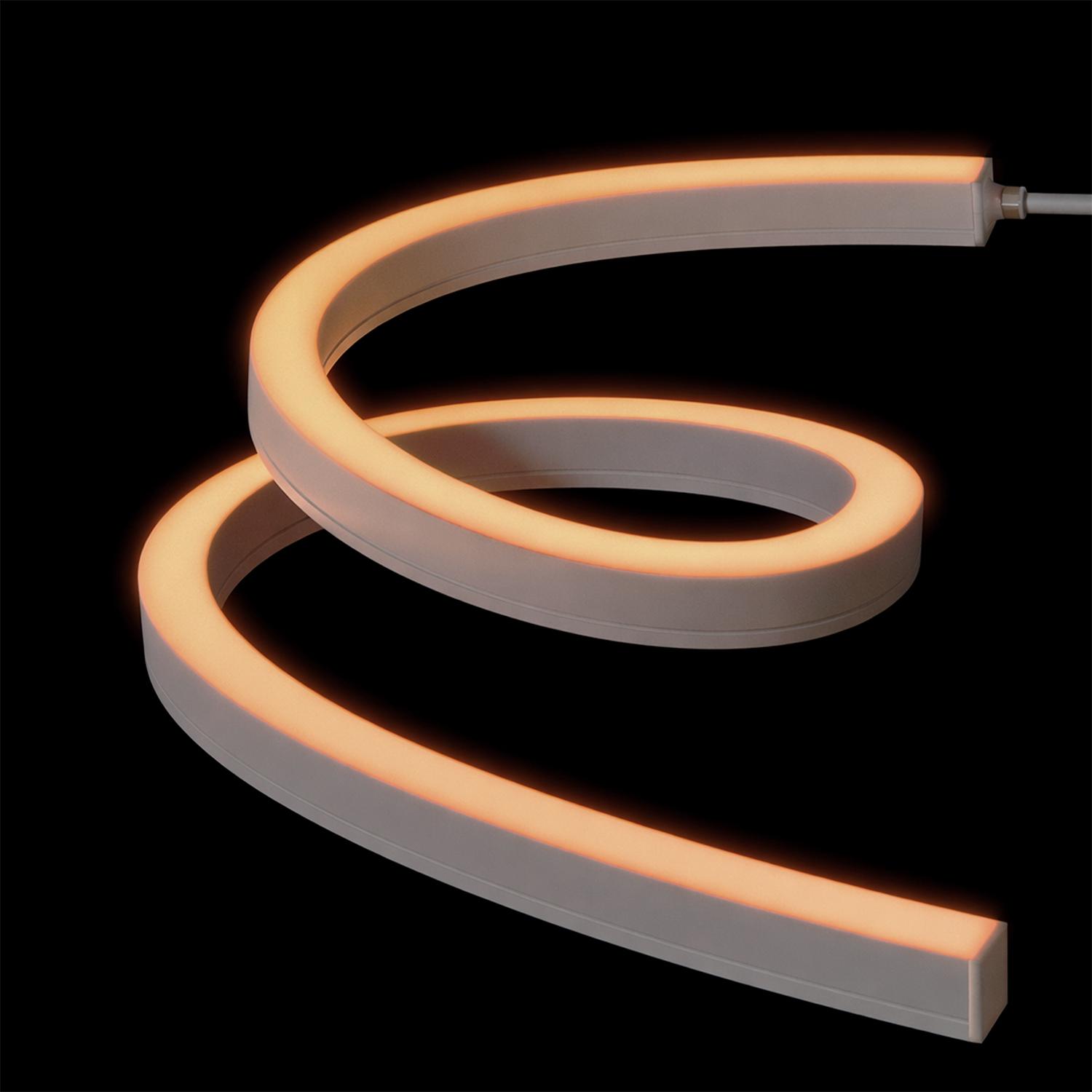

LINAIRE® Flex 3D Bend Warm Dim
3D-bendable architectural light that glows warmer as it dims, to replace the familiar glow of incandescent bulbs.
Water resistant with precision light quality and full diffusion for a dotless look and seamless integration into architectural curves.
- 5 Year Limited Warranty
- Bends in both directions (top and side) for maximum versatility
- Smooth dimming with a simple 2-wire installation
- Fully diffused lighting performance across the CCT range (3000K-1800K)
- Water resistant for indoor and outdoor use, UV stabilized
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)

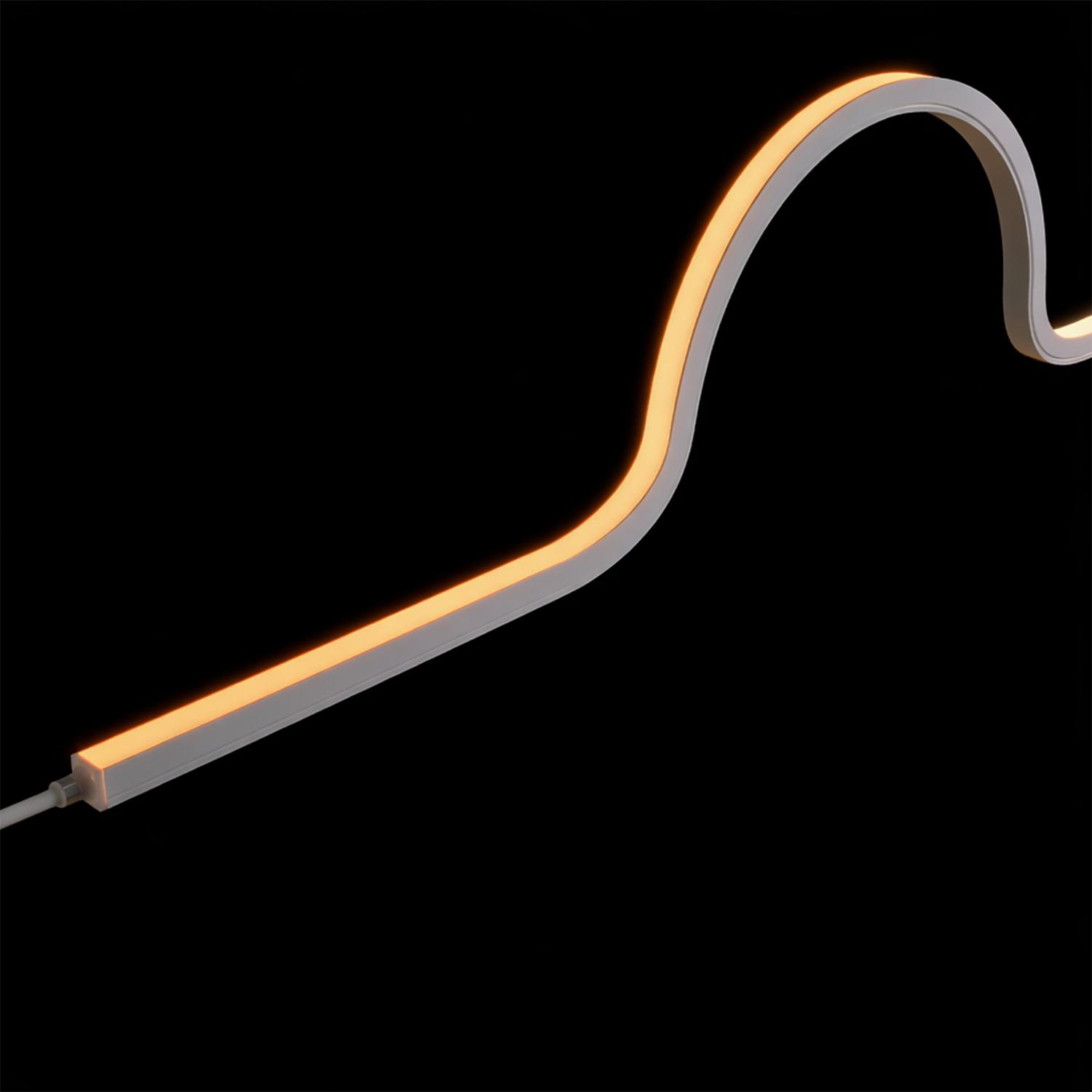

LINAIRE® Flex Top Bend Warm Dim
Top bend architectural light that glows warmer as it dims, to replace the familiar glow of incandescent bulbs.
Water resistant with precision light quality and full diffusion for a dotless look and seamless integration into architectural curves.
- 5 Year Limited Warranty
- Top-bending architectural profile
- Smooth dimming with a simple 2-wire installation
- Fully diffused lighting performance across the CCT range (3000K-1800K)
- Water resistant for indoor and outdoor use, UV stabilized
- Factory Assembly (IP67)
- Field Adjustable Termination (IP65)
